ELECTROMIG 400 SYNERGIC

ELECTROMIG 400 SYNERGIC

Download PDF Request Info

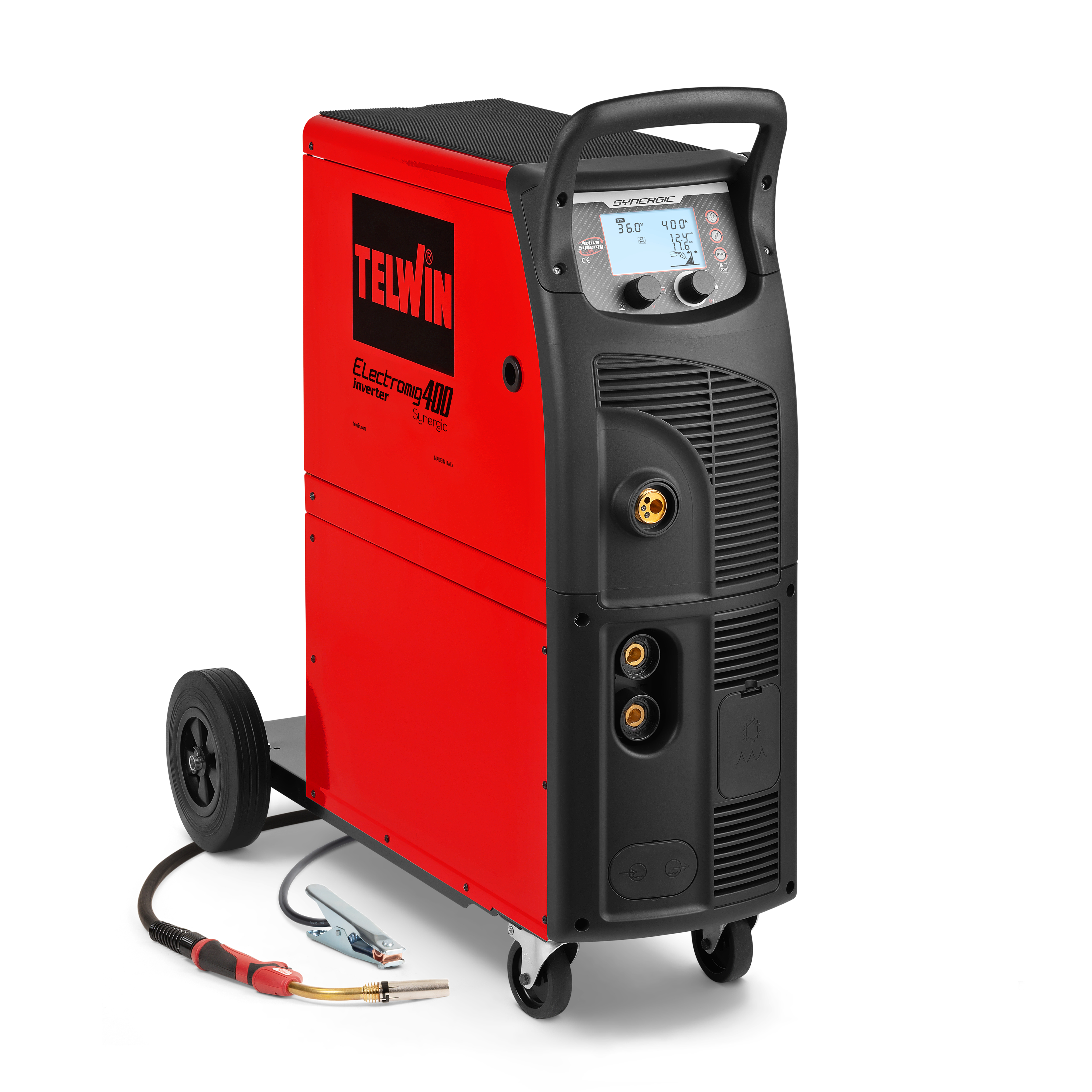

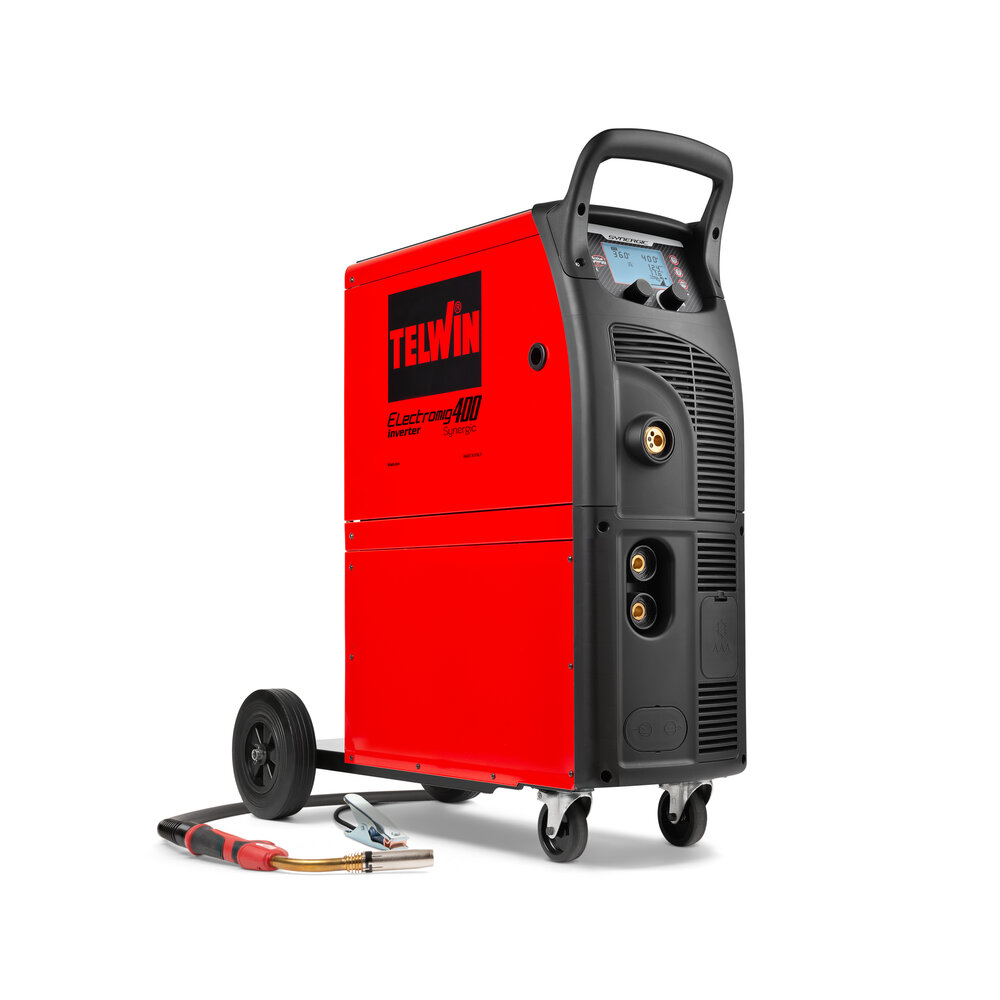

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.

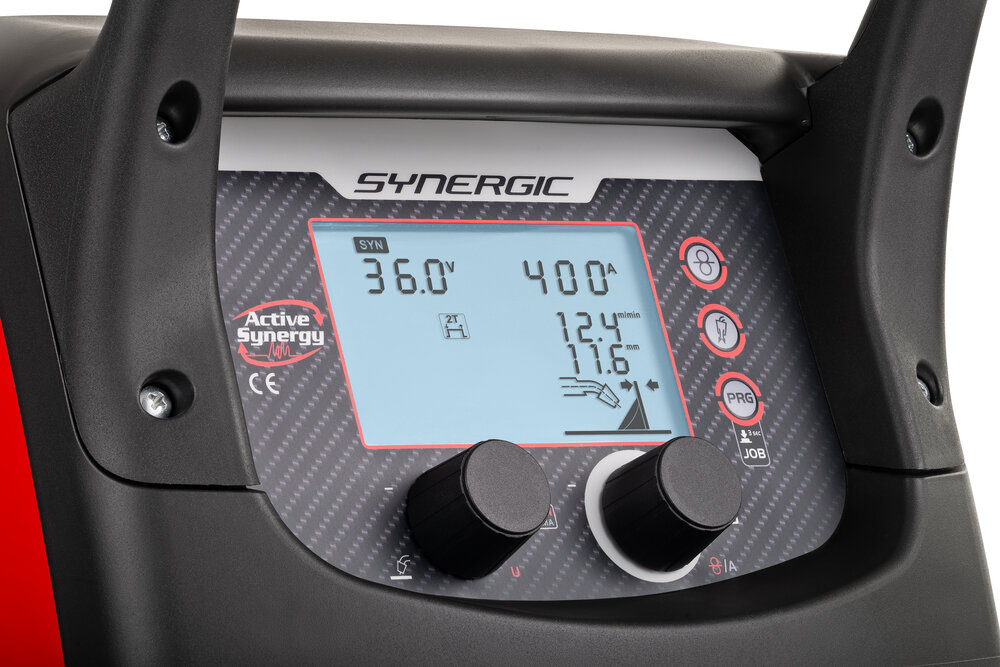

Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-rolls wire feeder.
Flexible use with various welded materials (steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal). Wide variety of application fields, from industry to maintenance, installation to bodywork activities. Synergic adjustment makes the product simple to use. The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Features:

Manual or synergic operating;
40 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, Bi-Level, spot, inch and mm material thicknesses;
Adjustments in MMA: hot start, arc force, anti-stick;
VRD selection.
Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%);
TIG Lift

Complete with MIG-MAG torch, cable and earth clamp.

CODE

816155

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 320 / 20 - 400 A

MAX CURRENT

320 @ 25% / 400 @ 30% A

DC CURRENT

200 / 270 A

MAX NO LOAD VOLTAGE

106 / 73 V

MAX ABSORBED CURRENT

33 / 25 A

ABSORBED CURRENT AT 60%

17 / 15 A

MAX ABSORBED POWER

12,6 / 16,5 kW

ABSORBED POWER AT 60%

6,5 / 9,5 kW

EFFICIENCY

89 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

86,5 x 39 x 91,5 cm

WEIGHT

42 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

MT36 MIG TORCH 3M

742186

TORCH HOOK

645704

WORK CLAMP + CABLE 35MMQ 3M AX50

804217

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

MIG TORCHES

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

MASKS

VANTAGE RED XL MMA/MIG-MAG/TIG HELMET

802936

Manual or synergic operating;
40 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, Bi-Level, spot, inch and mm material thicknesses;
Adjustments in MMA: hot start, arc force, anti-stick;
VRD selection.
Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%);
TIG Lift

Complete with MIG-MAG torch, cable and earth clamp.

CODE

816155

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 320 / 20 - 400 A

MAX CURRENT DC EN60974-1

320 @ 25% / 400 @ 30% A

DC CURRENT AT 60%

200 / 270 A

MAX NO LOAD VOLTAGE IN DC

106 / 73 V

MAX ABSORBED CURRENT

33 / 25 A

ABSORBED CURRENT AT 60%

17 / 15 A

MAX ABSORBED POWER

12,6 / 16,5 kW

ABSORBED POWER AT 60%

6,5 / 9,5 kW

EFFICIENCY

89 %

POWER FACTOR(cosphi) (cosphi)

0,9

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

86,5 x 39 x 91,5 cm

WEIGHT

42 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

MT36 MIG TORCH 3M

742186

TORCH HOOK

645704

WORK CLAMP + CABLE 35MMQ 3M AX50

804217

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

MIG TORCHES

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

MASKS

VANTAGE RED XL MMA/MIG-MAG/TIG HELMET

802936

ONE TOUCH

Set the material thickness and start welding!

The ONE TOUCH synergic adjustment reduces setting times and guarantees excellent work quality. Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.
