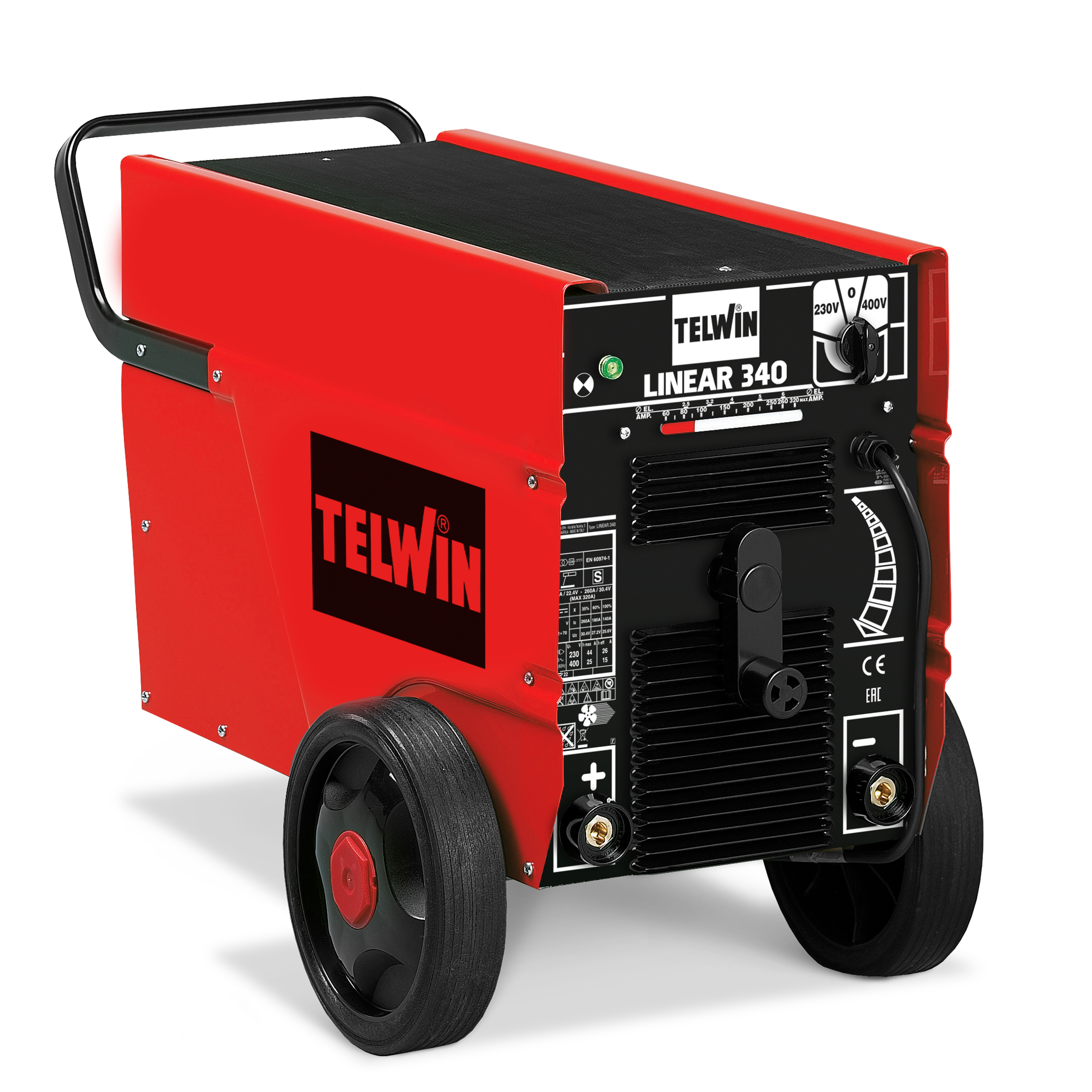

LINEAR 340

LINEAR 340

Download PDF Request Info

Direct current (DC) MMA electrode welding machine, 320A. Three-phase, 230/400V power supply. On wheels.
Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 6 mm.
Continuous adjustment of welding current.

Direct current (DC) MMA electrode welding machine, 320A. Three-phase, 230/400V power supply. On wheels.
Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 6 mm.
Continuous adjustment of welding current.

MMA, rectified, electrode welding machine in direct current (DC).
Stepless regulation of welding current.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

CODE

819020

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

60 - 320 A

MAX CURRENT

260 @ 35 % A

MAX CURRENT

320 @ 25 % A

DC CURRENT

180 A

MAX NO LOAD VOLTAGE

65 V

MAX ABSORBED POWER

11,5 kW

ABSORBED POWER AT 60%

7 kW

POWER FACTOR

0,6

D. USABLE ELECTRODES IN DC

2 - 6 mm

PROTECTION DEGREE

IP22

DIMENSIONS

89 x 46 x 59 cm

WEIGHT

80 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

GOUGING ACCESSORIES

GOUGING KIT

ACCESSORIES/VARIOUS/SPARE PARTS

MMA WELDING KIT 350A 35 MMQ 4+3M AX50

MMA, rectified, electrode welding machine in direct current (DC).
Stepless regulation of welding current.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

CODE

819020

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

60 - 320 A

MAX CURRENT DC EN60974-1

260 @ 35 % A

MAX CURRENT DC

320 @ 25 % A

DC CURRENT AT 60%

180 A

MAX NO LOAD VOLTAGE IN DC

65 V

MAX ABSORBED POWER

11,5 kW

ABSORBED POWER AT 60%

7 kW

POWER FACTOR(cosphi) (cosphi)

0,6

D.USABLE ELECTRODES IN DC

2 - 6 mm

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

89 x 46 x 59 cm

WEIGHT

80 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

GOUGING ACCESSORIES

GOUGING KIT

802666

ACCESSORIES/VARIOUS/SPARE PARTS

MMA WELDING KIT 350A 35 MMQ 4+3M AX50

801095

LINEAR 500i XD

LINEAR 450i

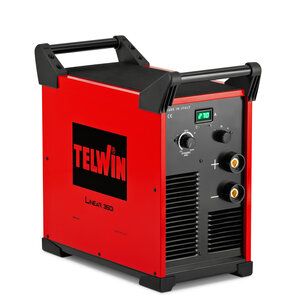

LINEAR 350i
