Home PPE & Safety Helmets ROUNDVIEW MMA/MIG-MAG/TIG HELMET

ROUNDVIEW MMA/MIG-MAG/TIG HELMET

Add to comparison
Add to comparison

ROUNDVIEW MMA/MIG-MAG/TIG HELMET

Download PDF Request Info

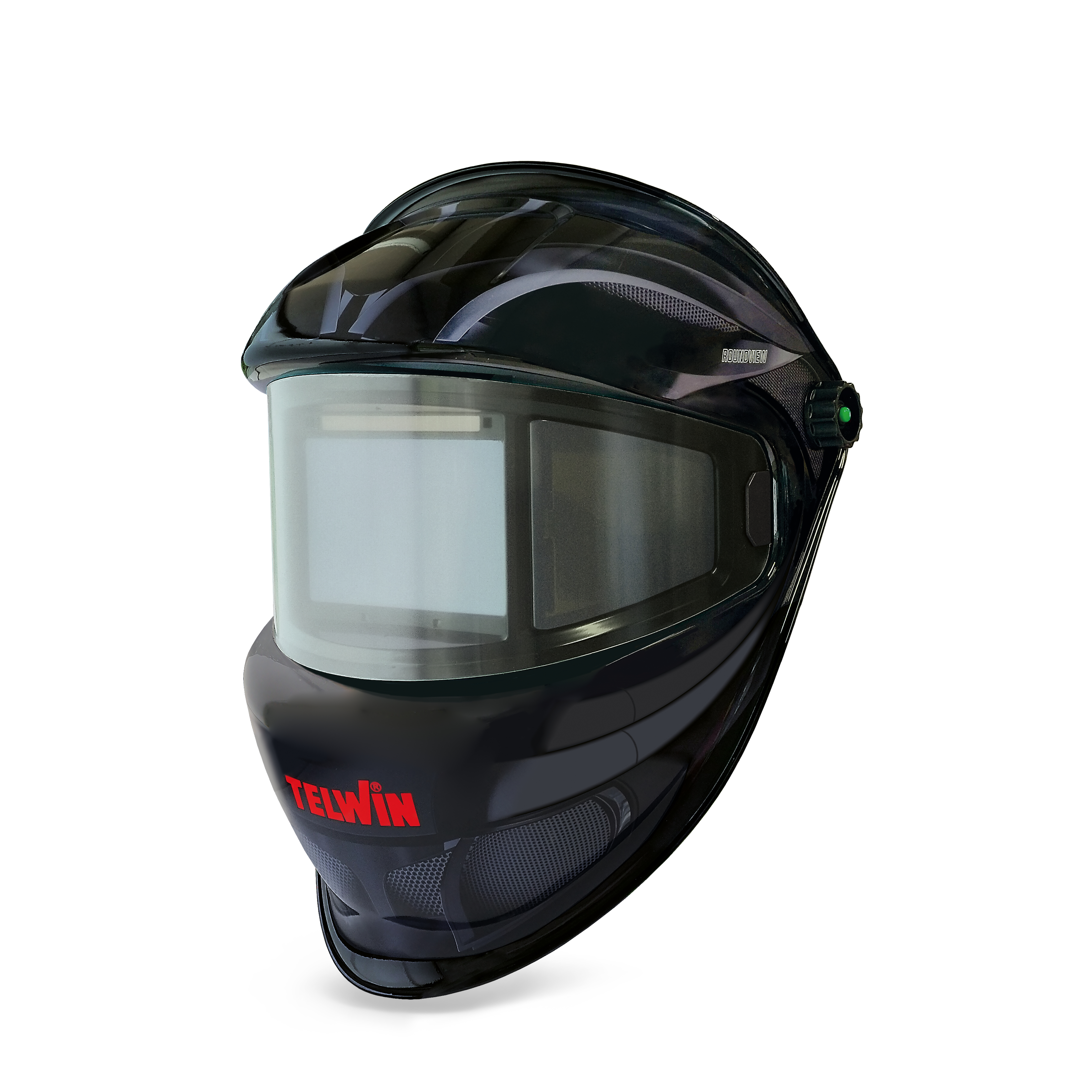

  • Automatic helmet for industrial use Telwin Roundview suitable for all types of MMA, MIG-MAG and TIG (>2A) welding. Optical class 1/1/1/1. Solar cell operation.
  • Maximum protection and vision: darkening adjustment (DIN 3/5 ÷ 9/9÷13). 180° viewing area with fixed dimming side openings. In addition to adjusting the sensitivity of the filter according to the welding process, there is also an adjustment of the delay time for switching from the dark to the light state after the arc has been interrupted, depending on the brightness of the workpiece.
  • Vision quality for safe work without interruptions: The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
  • Vivid colours: True Color technology enables work with more realistic colour vision, with clearer contrasts and greater definition of the image for more precise welding and less eye fatigue.
  • “GRIND” mode (grinding): blocks darkening of the mask to carry out protected grinding operations in total safety.
  • Comfortable use: light and comfortable, it is fitted with a headgear adjustment system for perfect fit and protection.
  • Automatic helmet for industrial use Telwin Roundview suitable for all types of MMA, MIG-MAG and TIG (>2A) welding. Optical class 1/1/1/1. Solar cell operation.
  • Maximum protection and vision: darkening adjustment (DIN 3/5 ÷ 9/9÷13). 180° viewing area with fixed dimming side openings. In addition to adjusting the sensitivity of the filter according to the welding process, there is also an adjustment of the delay time for switching from the dark to the light state after the arc has been interrupted, depending on the brightness of the workpiece.
  • Vision quality for safe work without interruptions: The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
  • Vivid colours: True Color technology enables work with more realistic colour vision, with clearer contrasts and greater definition of the image for more precise welding and less eye fatigue.
  • “GRIND” mode (grinding): blocks darkening of the mask to carry out protected grinding operations in total safety.
  • Comfortable use: light and comfortable, it is fitted with a headgear adjustment system for perfect fit and protection.

Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 3/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
It is not only fitted with a filter sensitivity adjuster depending on the welding process being carried out, but also has an external adjuster which can delay the time between darkening and lightening phases when the arc welding has been completed, according to the level of brightness of the piece. It implements also the grinding mode.
Features:
- adjustable automatic darkening filter;
- 180° viewing area, fixed dimming side openings;

- double dimming scale;
- optical class 1/1/1/1;
- 4 sensors;
- dark-light delay and sensitivity adjuster;
- TIG from >2 A;
- grinding mode;
- solar cell powered;
- light and comfortable to wear.

OPTIONAL:
External glass protection 396X116 mm 2 pcs. cod.804395

Internal glass protection  70x103.5 mm 2 pcs. cod.804396
Side filter 86X78-46 mm 2 pcs. cod.804399

CODE

804392

TIG HELMET

> 2A

MIG-MAG HELMET

*

MMA HELMET

*

GRINDING

*

LUMINOUS STATE

3 DIN

VARIABLE STATUS

5-9 / 9-13 DIN

SWITCHING TIME LIGHT-DARK

< 0,1 ms

DELAY FROM DARK TO LIGHT STATE

0,1 - 1 s

OPTIC CLASS

1/1/1/1

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

4

VIEWING AREA

100x67 mm

DIMENSIONS

243x236x346 mm

WEIGHT

0,700 kg

LUMINOUS STATE

3 DIN

Dark state

5 DIN

SENSORS

4 NR

Catalog Image

Download IMG

Instruction Manual

Download PDF

Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 3/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
It is not only fitted with a filter sensitivity adjuster depending on the welding process being carried out, but also has an external adjuster which can delay the time between darkening and lightening phases when the arc welding has been completed, according to the level of brightness of the piece. It implements also the grinding mode.
Features:
- adjustable automatic darkening filter;
- 180° viewing area, fixed dimming side openings;

- double dimming scale;
- optical class 1/1/1/1;
- 4 sensors;
- dark-light delay and sensitivity adjuster;
- TIG from >2 A;
- grinding mode;
- solar cell powered;
- light and comfortable to wear.

OPTIONAL:
External glass protection 396X116 mm 2 pcs. cod.804395

Internal glass protection  70x103.5 mm 2 pcs. cod.804396
Side filter 86X78-46 mm 2 pcs. cod.804399

CODE

804392

TIG

> 2A

MIG - MAG

*

MMA

*

GRINDING

*

LUMINOUS STATE

3 DIN

VARIABLE STATUS

5-9 / 9-13 DIN

SWITCHING TIME LIGHT-DARK

< 0,1 ms

DELAY FROM DARK TO LIGHT STATE

0,1 - 1 s

OPTIC CLASS

1/1/1/1

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

4

VIEWING AREA

100x67 mm

DIMENSIONS

243x236x346 mm

WEIGHT

0,700 kg

Luminous state

3 DIN

Dark state

5 DIN

SENSORI

4 NR

Catalog Image

Download IMG

Instruction Manual

Download PDF

MASKS FILTERS AND ACCESSORIES

MAGNIFYING LENS 1.5X 107,4x50,5MM

804406

MAGNIFYING LENS 2.0X 107,4x50,5MM

804407

MAGNIFYING LENS 2.5X 107,4x50,5MM

804408

TRUE COLOR TECHNOLOGY

Makes colour perception realistic even during the welding phases. Realer colours, cleaner contrasts and better definition of the image for more precise welding.

FIND THE DIFFERENCE!

WITH TRUE COLOR

WITHOUT TRUE COLOR
