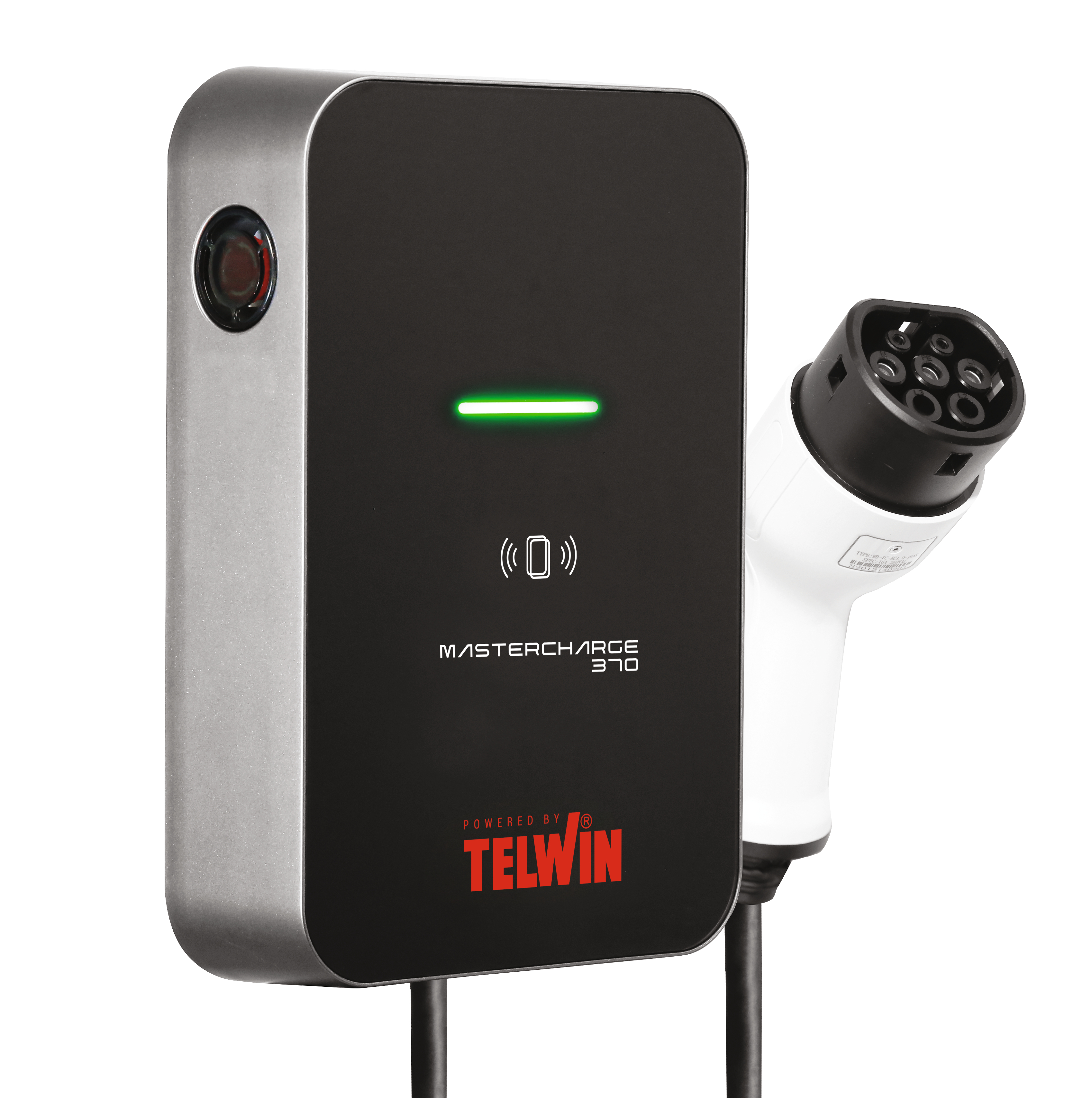

MASTERCHARGE 370

Add to comparison

MASTERCHARGE 370

Download PDF Request Info
  • Charging station for electric vehicles in AC alternating current (mode 3). 3.7 kW power (16A, 230V, single-phase). IP54. Equipped with direct charging cable (5m) with type 2 connector, wall bracket and activation badge.
  • Rapid installation by qualified electrician. Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) legislation.
  • Extremely simple to use thanks to an immediate and secure connection. Simple and immediate reading of the vehicle charge status from the front led on the product.
  • Use via authentication with RFID badge for authorised users only.
  • Compact and innovative design. Suitable both for indoor and outdoor installations in sheltered areas (IP54, working temperature from -20°C up to +50°C) in detached homes or in residential or business complexes.
  • Charging station for electric vehicles in AC alternating current (mode 3). 3.7 kW power (16A, 230V, single-phase). IP54. Equipped with direct charging cable (5m) with type 2 connector, wall bracket and activation badge.
  • Rapid installation by qualified electrician. Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) legislation.
  • Extremely simple to use thanks to an immediate and secure connection. Simple and immediate reading of the vehicle charge status from the front led on the product.
  • Use via authentication with RFID badge for authorised users only.
  • Compact and innovative design. Suitable both for indoor and outdoor installations in sheltered areas (IP54, working temperature from -20°C up to +50°C) in detached homes or in residential or business complexes.

Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
The charge status of the vehicle is always visible on the front led on the product.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.

Features:

  • 3,7 kW power (16A 230V singlephase);
  • Mode 3 connection, Type 2 connector;
  • 5-metre long cable;
  • Activation via RFID badge (4 cards supplied);
  • Rating IP54.


Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893001

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 Hz

MAX ABSORBED POWER

3,7 kW

MAX. CURRENT

16 A

MAX POWER

3

EV CONNECTOR TYPE

Type 2

RECHARGE MODE

Mode 3

CABLE TYPE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS

32,5 x 21, 5 x 7,7 cm

WEIGHT

3,8 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
The charge status of the vehicle is always visible on the front led on the product.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.

Features:

  • 3,7 kW power (16A 230V singlephase);
  • Mode 3 connection, Type 2 connector;
  • 5-metre long cable;
  • Activation via RFID badge (4 cards supplied);
  • Rating IP54.


Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893001

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 Hz

MAX POWER

3,7 kW

CURRENT MAX

16 A

POTENZA STAND BY

3

EV CONNECTOR TYPE

Type 2

CHARGING MODES

Mode 3

TYPE CABLE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS (LxWxH)

32,5 x 21, 5 x 7,7 cm

WEIGHT

3,8 kg
