TECHNOMIG 225 DUAL SYNERGIC

Download PDF Request Info
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 220A. With LCD display. On wheels.
  • OneTouch synergic adjustment: easy to use. 27 pre-set synergic curves.
  • Max. spool 15 kg (Ø 200 / 300 mm).
  • ATC (Advanced Thermal Control) to facilitate welding on thin materials.
  • MMA: Advanced arc control devices: arc force, hot start, anti-stick.
  • Contained weight and compactness for easy transport.
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 220A. With LCD display. On wheels.
  • OneTouch synergic adjustment: easy to use. 27 pre-set synergic curves.
  • Max. spool 15 kg (Ø 200 / 300 mm).
  • ATC (Advanced Thermal Control) to facilitate welding on thin materials.
  • MMA: Advanced arc control devices: arc force, hot start, anti-stick.
  • Contained weight and compactness for easy transport.
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet).
The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.
The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.
Features:
- Polarity reversal for GAS MIG-MAG/BRAZING welding;
- 27 synergy curves available;
- Visualization on LCD display of voltage, current, welding speed;
- Regulation of: wire speed up slope, electronic reactance, burn-back time, pós-gás;
- Choice of 2/4 times, spot operation;
- VRD device;
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MIG-MAG torch, work clamp and cable.

CODE

816057

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

52 V

CURRENT CONTROL RANGE DC

20 - 220 A

MAX CURRENT DC EN60974-1

180 @ 20% A

CURRENT 35% DC

135 A

DC CURRENT

100 A

MAX ABSORBED CURRENT

31 A

ABSORBED CURRENT AT 60%

15 A

MAX ABSORBED POWER

5 kW

ABSORBED POWER AT 60%

2,2 kW

EFFICIENCY

84 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 3,2 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS

79,5 x 37,5 x 73 cm

WEIGHT

29,6 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

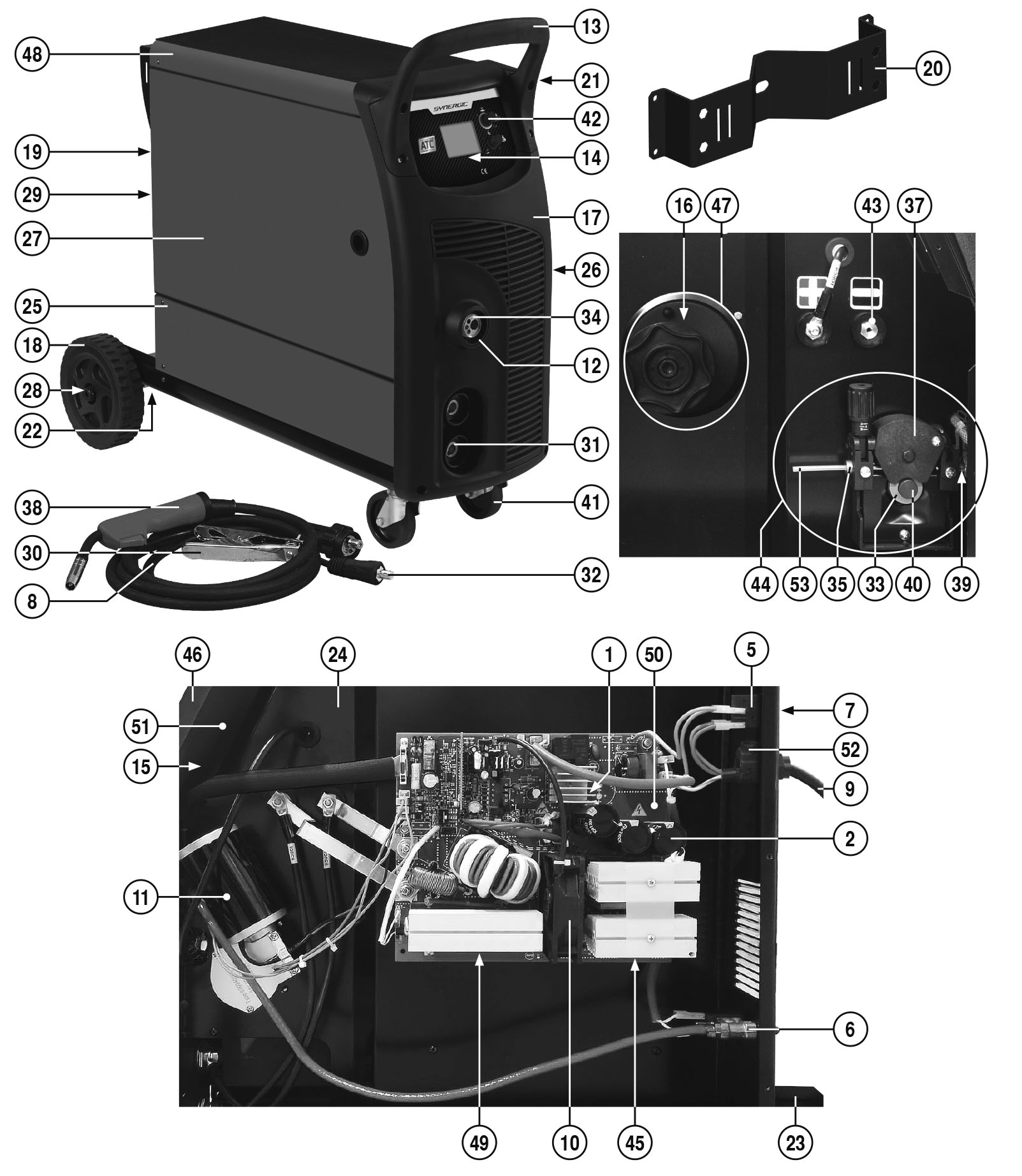

Spare Parts List

Download PDF

brochure

Download PDF

Certificate

Download PDF

Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet).
The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.
The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.
Features:
- Polarity reversal for GAS MIG-MAG/BRAZING welding;
- 27 synergy curves available;
- Visualization on LCD display of voltage, current, welding speed;
- Regulation of: wire speed up slope, electronic reactance, burn-back time, pós-gás;
- Choice of 2/4 times, spot operation;
- VRD device;
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MIG-MAG torch, work clamp and cable.

CODE

816057

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

52 V

CURRENT RANGE IN DC

20 - 220 A

MAX CURRENT DC EN60974-1

180 @ 20% A

CURRENT 35% DC

135 A

DC CURRENT AT 60%

100 A

MAX ABSORBED CURRENT

31 A

ABSORBED CURRENT AT 60%

15 A

MAX ABSORBED POWER

5 kW

ABSORBED POWER AT 60%

2,2 kW

EFFICIENCY

84 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 3,2 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

79,5 x 37,5 x 73 cm

WEIGHT

29,6 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

Certificate

Download PDF

MT15 MIG TORCH 3M (RED)

742180

CABLE TW05V-A 1X025 L=03,00M ATLAS 50MMQ

124887

TOLEDO 250 WORK CLAMP 250A

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

QUICK GAS CONNECTOR

804208
MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

ALUMINIUM WELDING KIT D. 0,8-1 MM

802817
MIG TORCHES

MT15 MIG TORCH 4M

742181

MT15 MIG TORCH 5M

742182
TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058

Technomig: one machine, endless possibilities

Wire welding, with or without gas, electrode and TIG welding in a single product.

Discover the range

ONE TOUCH TECHNOLOGY

ONE TOUCH

The ONE TOUCH synergic adjustment reduces setting times and guarantees excellent work quality. Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.

Set the material thickness and start welding!

  1. Setting of material/wire diameter/gas
  2. Thickness setting
  3. Welding parameters always clearly visible
  4. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder’s style.

Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically.

The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.

WATCH THE VIDEO

ADVANCED THERMAL CONTROL

The ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
