INVERSPOTTER 14000 SMART AQUA 200/240V

Download PDF Request Info
  • Inverter spot welding machine with Wave OS technology and TFT colour panel. With liquid cooled pneumatic clamp.
  • SMART AUTOSET technology: automatic setting of the spot welding parameters thanks to type and thickness detection of the materials to weld.
  • POWER GUN technology: power circuits integrated in the clamp. Long (5m) and light cables for ample action range.
  • Saving spot welding data via USB. Spot Welding Data Management for reading and processing spot welding data.
  • Optional connectivity kit for data transfer via Wi-Fi.
  • Numerous arms and electrodes available.
  • Inverter spot welding machine with Wave OS technology and TFT colour panel. With liquid cooled pneumatic clamp.
  • SMART AUTOSET technology: automatic setting of the spot welding parameters thanks to type and thickness detection of the materials to weld.
  • POWER GUN technology: power circuits integrated in the clamp. Long (5m) and light cables for ample action range.
  • Saving spot welding data via USB. Spot Welding Data Management for reading and processing spot welding data.
  • Optional connectivity kit for data transfer via Wi-Fi.
  • Numerous arms and electrodes available.

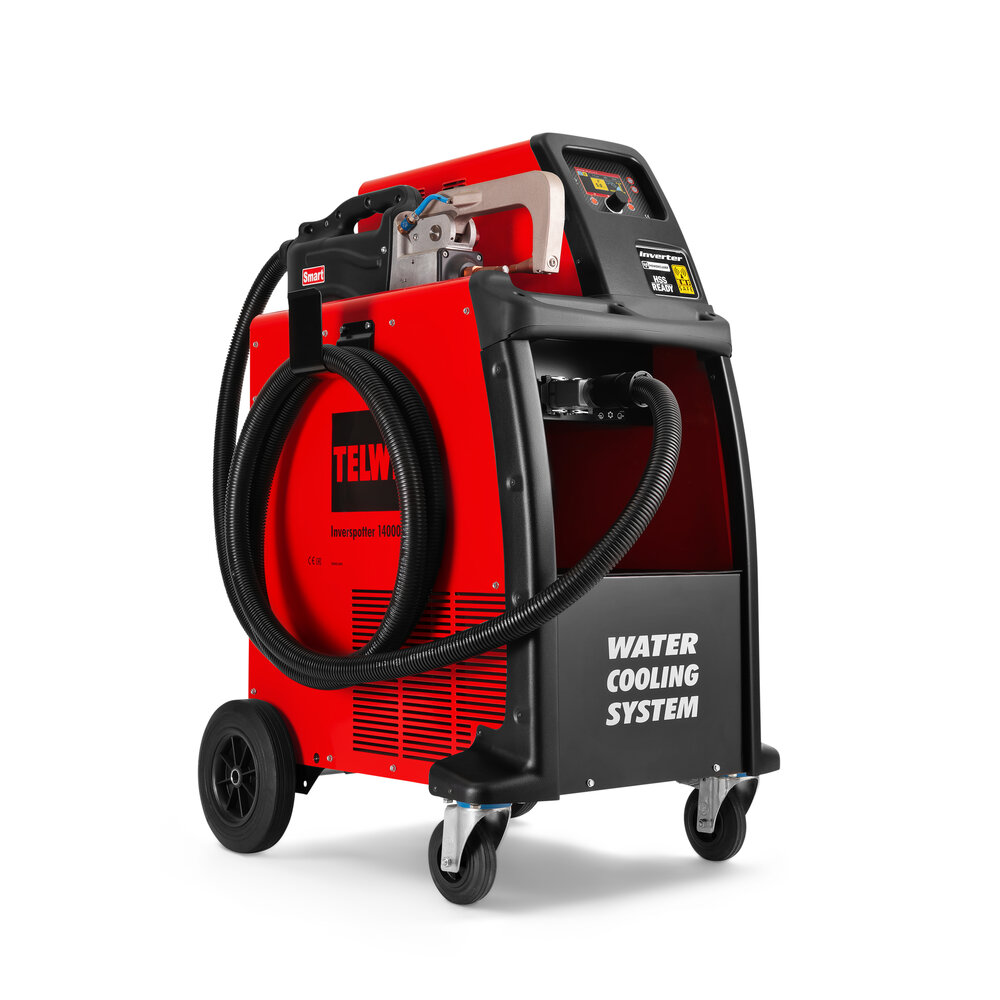

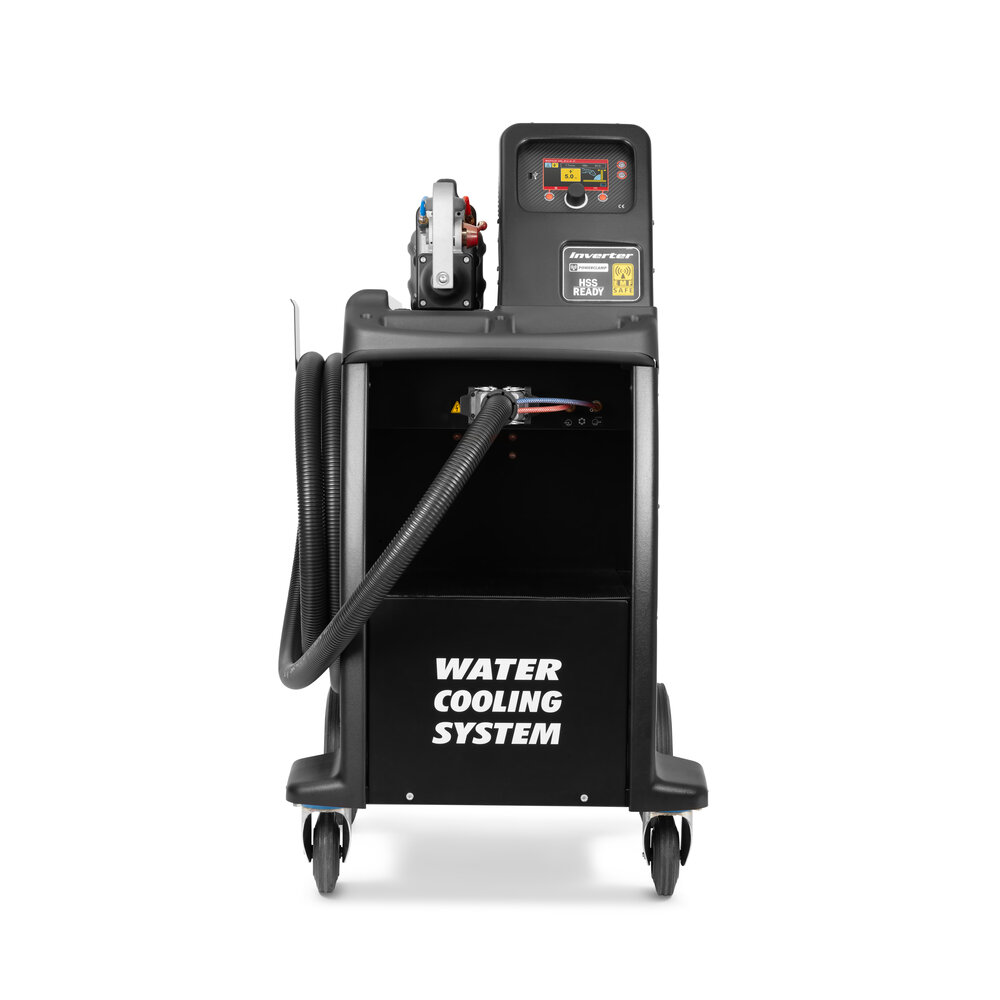

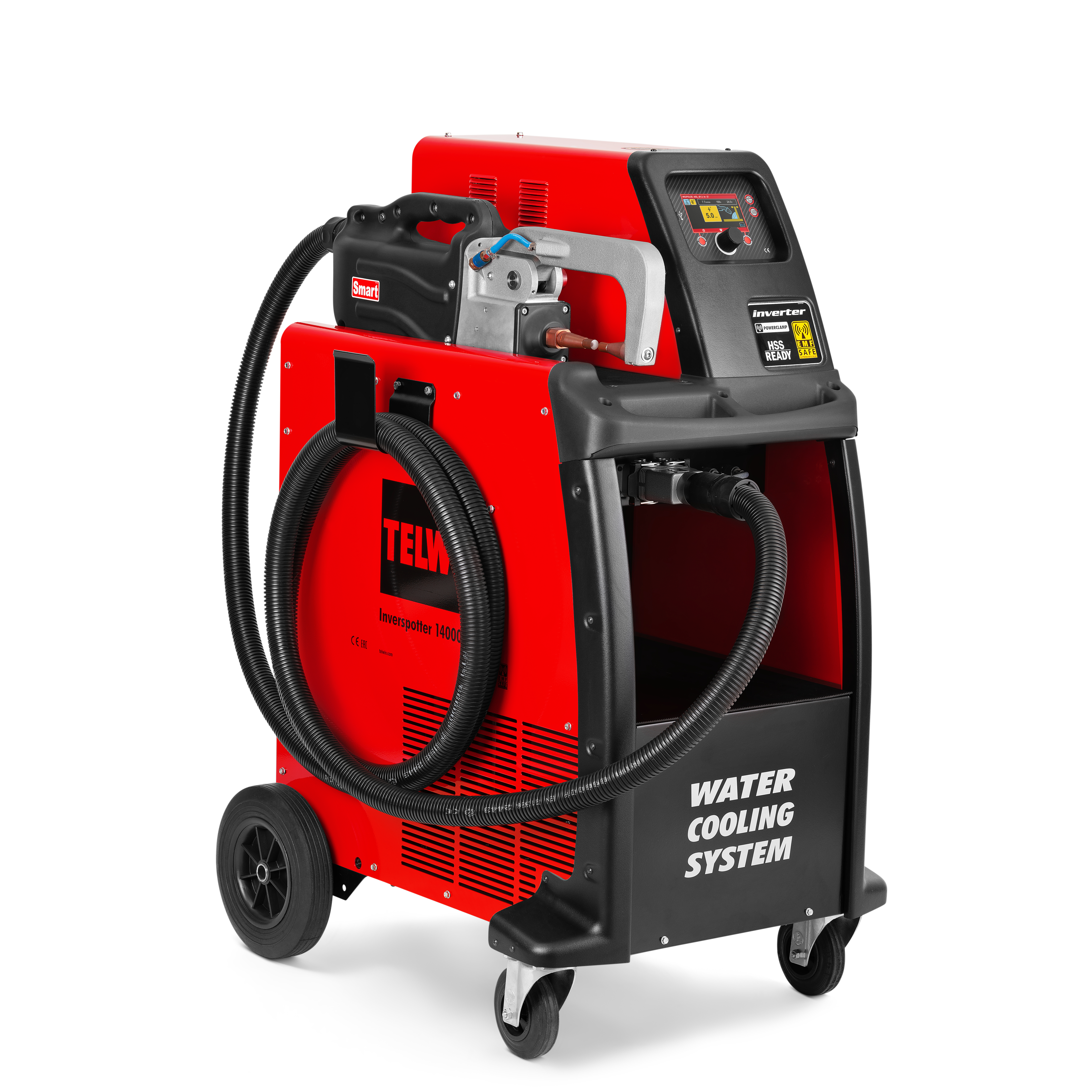

Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding machine.
The POWER GUN technology allows for high spot-welding currents with low absorption rates, the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. Automatic pressure monitoring ensures excellent adjustment of the force applied to the gun electrodes.
It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets.
The innovative SMART AUTOSET technology, thanks to the automatic recognition of the materials and thickness, eliminates set-up times and guarantees optimal spot welding even if the types of steel to be processed are not known.
The WAVE technology facilitates interaction with the machine and tracks all operating parameters for their processing and reporting.
The multifunction digital panel can be used to select the automatic Smart Autoset mode as well as the EASY and the manual mode; the programmes and reports there generated can be transferred to a USB pen drive.
Features:
- pre- and post-heating for interventions on HSS and galvanized metals
- automatic recognition of the arm and inserted tool
- monitoring of mains voltage
- automatic cooling control of machine, clamp and cables
- regulation of approach, slope, welding and holding times
- regulation in pulsed welding
- automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.

CODE

823353

THREE PHASE MAINS VOLTAGE

200 / 240 V

MAINS FREQUENCY

50 / 60 Hz

MAX SPOT-WELDING CURRENT

15000 A

MAX NO LOAD VOLTAGE

13 V

MAX ABSORBED POWER

68 kW

RATED POWER X=50%

10 kW

FUSE

63A A

POWER FACTOR

0,8

INVERTER FREQUENCY

8000 Hz

MAX WELD.THICK. ON 2 SHEETS

3 + 3 + 3 mm

MAX ELECTRODES POWER

580 daN

DUTY CYCLE

2 %

PROTECTION DEGREE

IP20

DIMENSIONS

80 x 52 x 115 cm

WEIGHT

157 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding machine.
The POWER GUN technology allows for high spot-welding currents with low absorption rates, the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. Automatic pressure monitoring ensures excellent adjustment of the force applied to the gun electrodes.
It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets.
The innovative SMART AUTOSET technology, thanks to the automatic recognition of the materials and thickness, eliminates set-up times and guarantees optimal spot welding even if the types of steel to be processed are not known.
The WAVE technology facilitates interaction with the machine and tracks all operating parameters for their processing and reporting.
The multifunction digital panel can be used to select the automatic Smart Autoset mode as well as the EASY and the manual mode; the programmes and reports there generated can be transferred to a USB pen drive.
Features:
- pre- and post-heating for interventions on HSS and galvanized metals
- automatic recognition of the arm and inserted tool
- monitoring of mains voltage
- automatic cooling control of machine, clamp and cables
- regulation of approach, slope, welding and holding times
- regulation in pulsed welding
- automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.

CODE

823353

THREEPHASE MAINS VOLTAGE

200 / 240 V

MAINS FREQUENCY

50 / 60 Hz

MAX SPOT-WELDING CURRENT

15000 A

SECONDARY NO LOAD VOLTAGE

13 V

MAX ABSORBED POWER

68 kW

RATED POWER X=50%

10 kW

MAINS FUSE

63A A

POWER FACTOR(cosphi) (cosphi)

0,8

INVERTER FREQUENCY

8000 Hz

MAX WELD.THICK.2 SHEETS

3 + 3 + 3 mm

MAX ELECTRODES POWER

580 daN

DUTY CYCLE

2 %

PROTECTION DEGREE

IP20

DIMENSIONS (LxWxH)

80 x 52 x 115 cm

WEIGHT

157 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

PNEUMATIC "C" GUN SMART AQUA

801067

SPOT WELDING CLAMPS

X POWER GUN 5M

801063
INVERSPOTTER PACK

INVERSPOTTER SMART PACK

804913

INVERSPOTTER STARTER PACK

804940

INVERSPOTTER EXPERT PACK

804914

INVERSPOTTER SHARK EXPERT PACK

804915
ARMS/ELECTRODES - INVERSPOTTER

CA1 ARM L=95 MM + ELECTRODE

803169

CA2 ARM L=95MM + ELECTRODE

803170

CA3 ARM L=300MM + ELECTRODE

803171

CA4 ARM L=550MM + ELECTRODE

803172

CA5 ARM L=42MM + ELECTRODE

803181

CA6 ARM L=430MM + ELECTRODE

803187

CA7 SHARK BRAZ L=635MM

803189

CA1 SHORT ELECTRODE KIT

802868

CMKA - CAPS A MAINTENANCE KIT

802767
OTHER INVERSPOTTER ACCESSORIES

360 RING KIT

802866

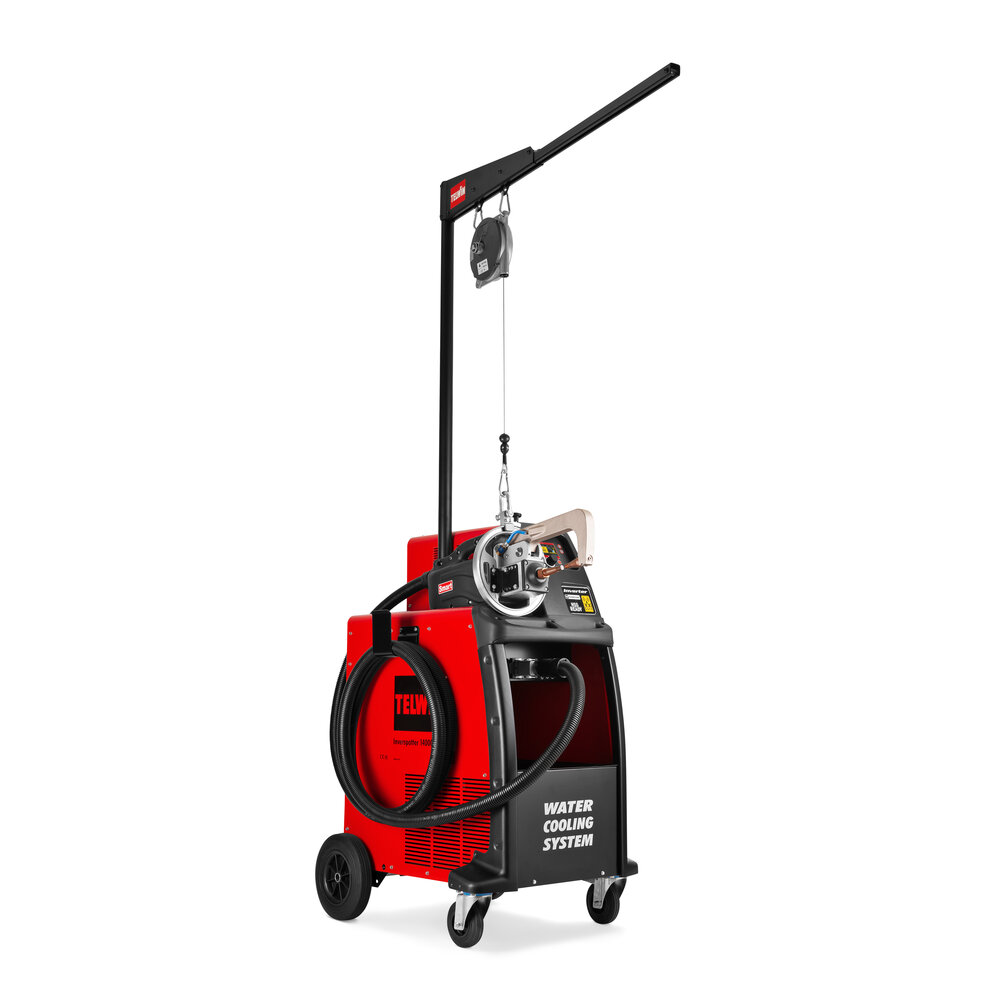

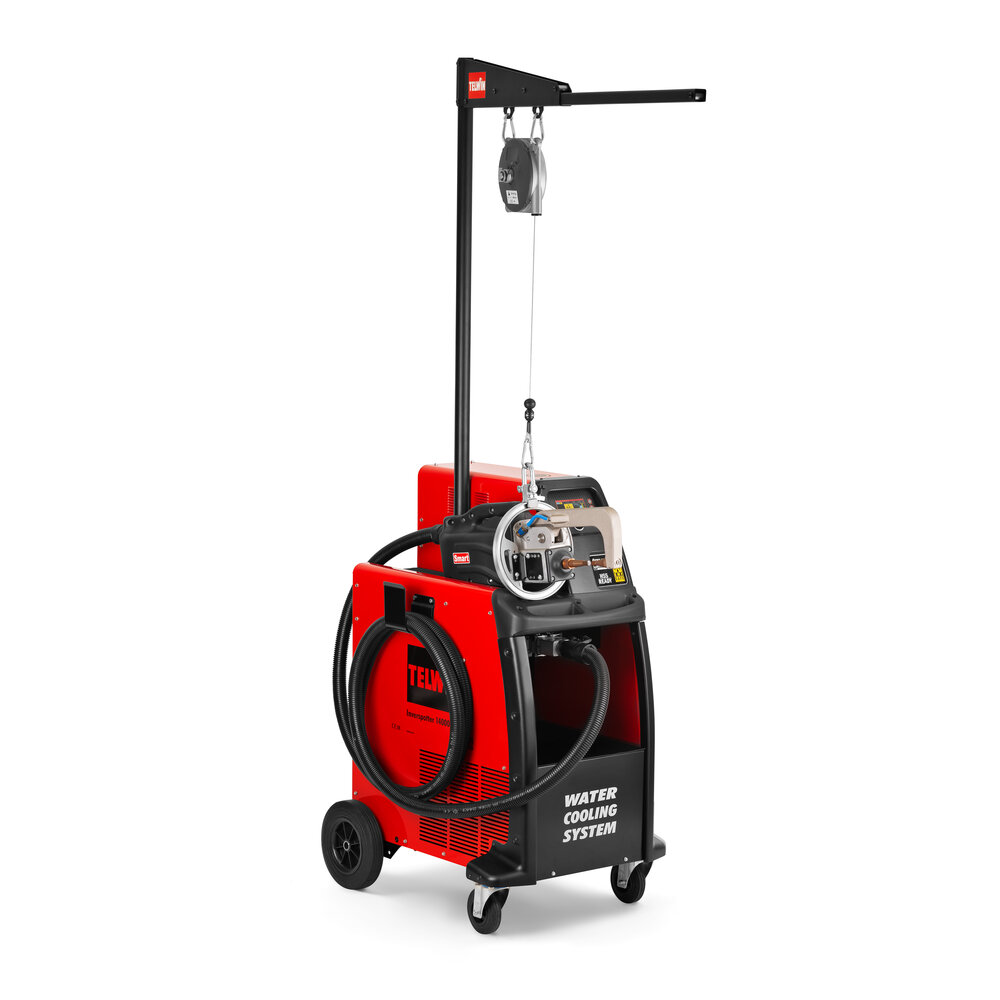

LOAD BALANCER AND SUPPORT KIT IS SMART
