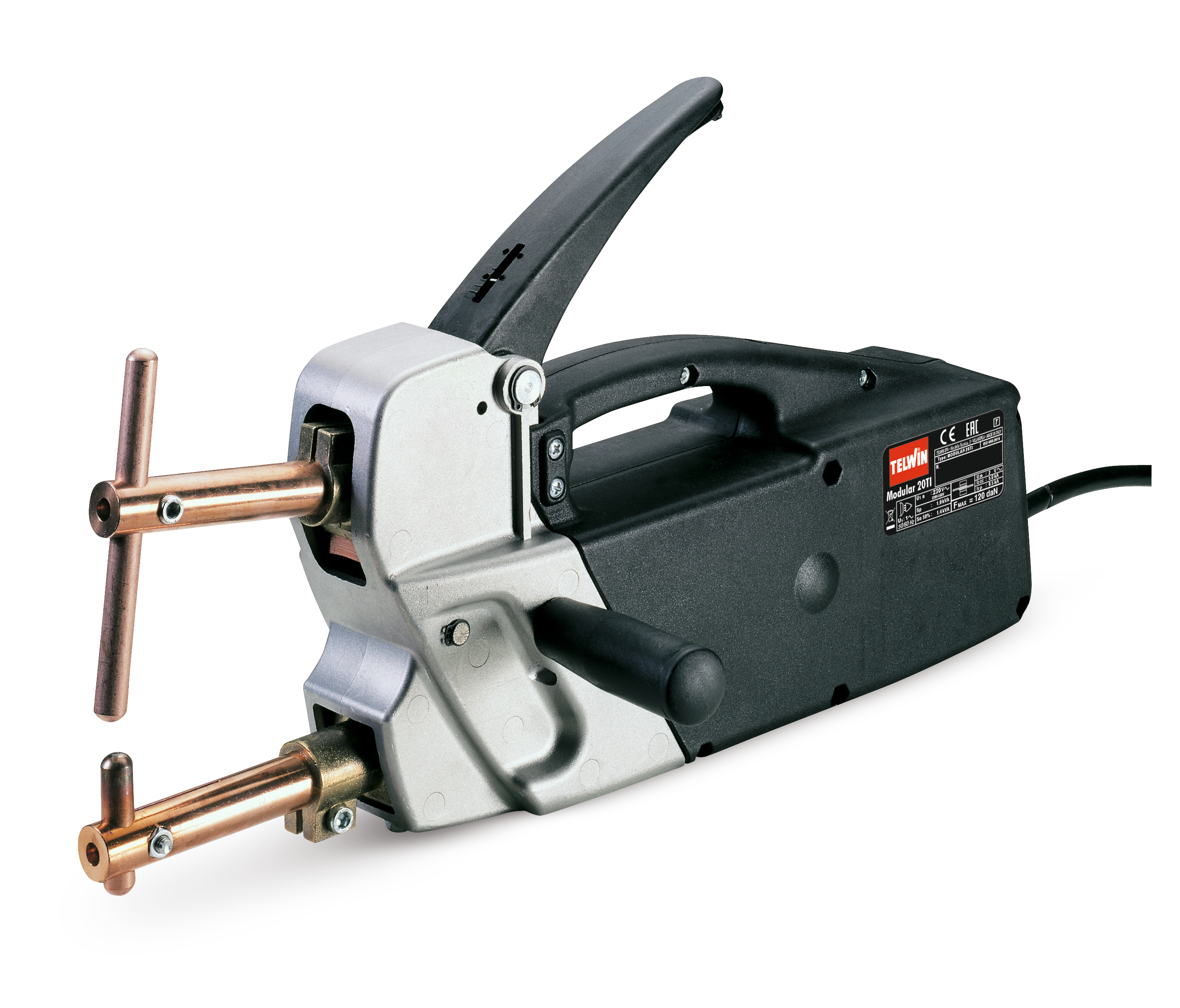

Spot welding machine with electronic control of the spot welding time.
Suitable for spot welding of sheets with maximum thickness 1+1mm.
Features:

synchronous electronic timer with spot welding time adjustable from 0,1 sec. to 1,2 sec.;
arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm);
handgrip made out of thermic isolating material.

CODE

823015

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX SPOT-WELDING CURRENT

5800 A

MAX NO LOAD VOLTAGE

2 V

RATED POWER X=50%

1,4

FUSE

16 A

POWER FACTOR

0,9

MAX WELD.THICK. ON 2 SHEETS

1 + 1 mm

DUTY CYCLE

1,5 %

PROTECTION DEGREE

IP20

DIMENSIONS

44 x 10 x 18,5 cm

WEIGHT

9,88 kg

Catalog Image

Instruction Manual

Spare Parts List

ELECTRODE HOLDER ARM L=120MM

STRAIGHT ELECTRODE L=100MM D.12MM

STRAIGHT ELECTRODE L=50MM D.12MM

ARMS/ELECTRODES - SPOTTER 9000

ARMS KIT FOR PNEUMATIC CLAMP

XA1 STRAIGHT ARMS L=120 MM + ELECTRODES

XA2 STRAIGHT ARMS L=120 MM + BENT ELECTRODES

XA3 ARMS + ELECTRODES FOR EXTERNAL PROFILES

XA4 STRAIGHT ARMS L=120 MM + CLAMP ELECTRODES

XA5 ARMS + ELECTRODES FOR INTERNAL PROFILES

XA6 STRAIGHT ARMS L=250MM + ELECTRODES

XA7 STRAIGHT ARMS L=350 MM + BENT ELECTRODES

XA8 SHAPED ARMS L=350MM + ELECTRODES

XA9 SHAPED ARMS L=500 MM + ELECTRODES

Spot welding machine with electronic control of the spot welding time.
Suitable for spot welding of sheets with maximum thickness 1+1mm.
Features:

synchronous electronic timer with spot welding time adjustable from 0,1 sec. to 1,2 sec.;
arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm);
handgrip made out of thermic isolating material.

CODE

823015

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX SPOT-WELDING CURRENT

5800 A

SECONDARY NO LOAD VOLTAGE

2 V

RATED POWER CONSUMPTI.X=50%kVA

1,4

MAINS FUSE

16 A

POWER FACTOR(cosphi) (cosphi)

0,9

MAX WELD.THICK.2 SHEETS

1 + 1 mm

DUTY CYCLE

1,5 %

PROTECTION DEGREE

IP20

DIMENSIONS (LxWxH)

44 x 10 x 18,5 cm

WEIGHT

9,88 kg

Catalog Image

Instruction Manual

Spare Parts List

ELECTRODE HOLDER ARM L=120MM

STRAIGHT ELECTRODE L=100MM D.12MM

690049

STRAIGHT ELECTRODE L=50MM D.12MM

690050

ARMS/ELECTRODES - SPOTTER 9000

ARMS KIT FOR PNEUMATIC CLAMP

803045

XA1 STRAIGHT ARMS L=120 MM + ELECTRODES

803151

XA2 STRAIGHT ARMS L=120 MM + BENT ELECTRODES

803150

XA3 ARMS + ELECTRODES FOR EXTERNAL PROFILES

803158

XA4 STRAIGHT ARMS L=120 MM + CLAMP ELECTRODES

803155

XA5 ARMS + ELECTRODES FOR INTERNAL PROFILES

803159

XA6 STRAIGHT ARMS L=250MM + ELECTRODES

803152

XA7 STRAIGHT ARMS L=350 MM + BENT ELECTRODES

803153

XA8 SHAPED ARMS L=350MM + ELECTRODES

803154

XA9 SHAPED ARMS L=500 MM + ELECTRODES

803156
