PV 105 PLASMA TORCH 6M

PV 105 PLASMA TORCH 6M

Download PDF Request Info

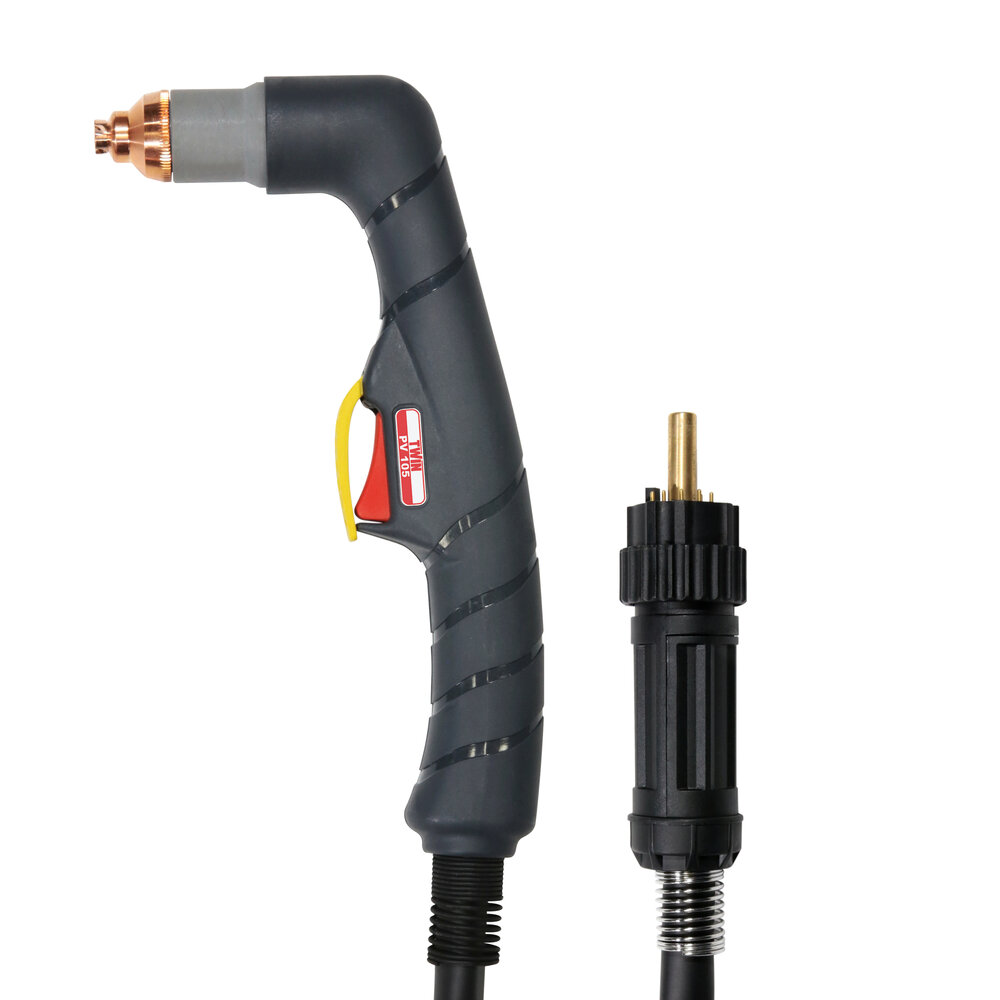

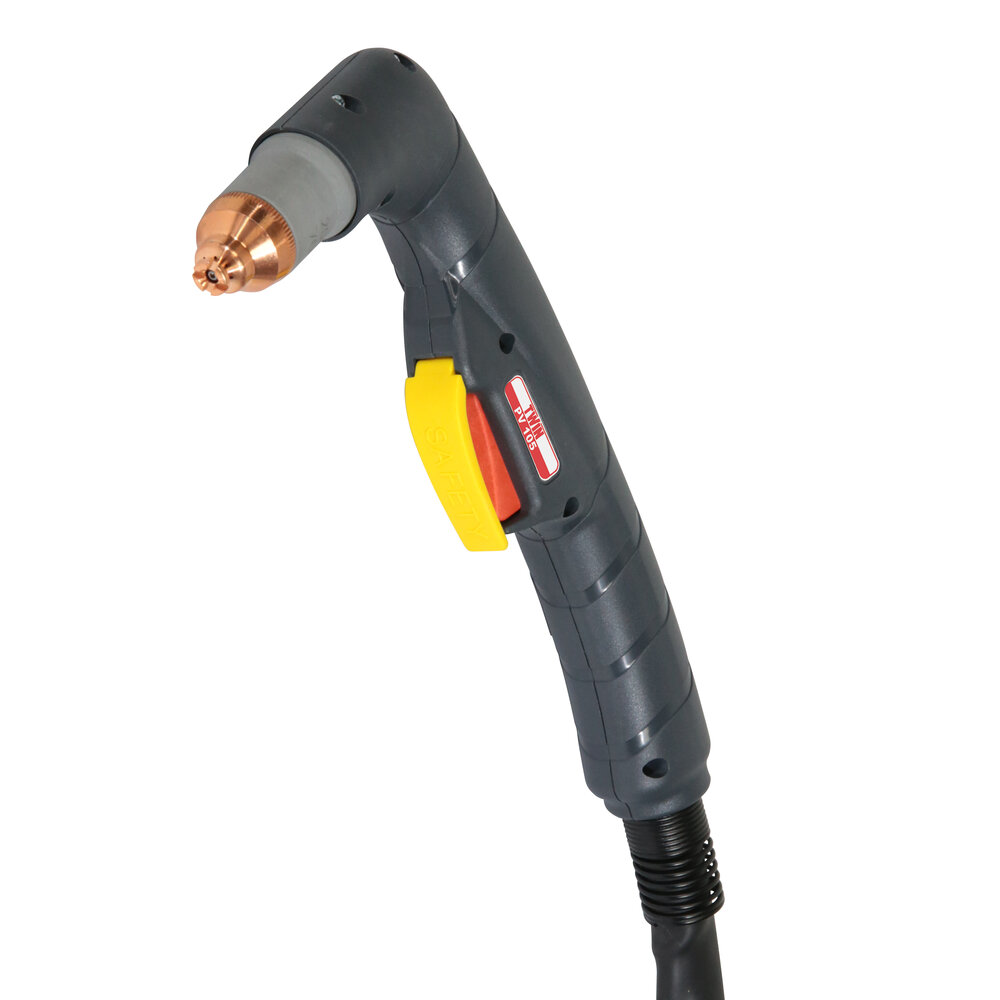

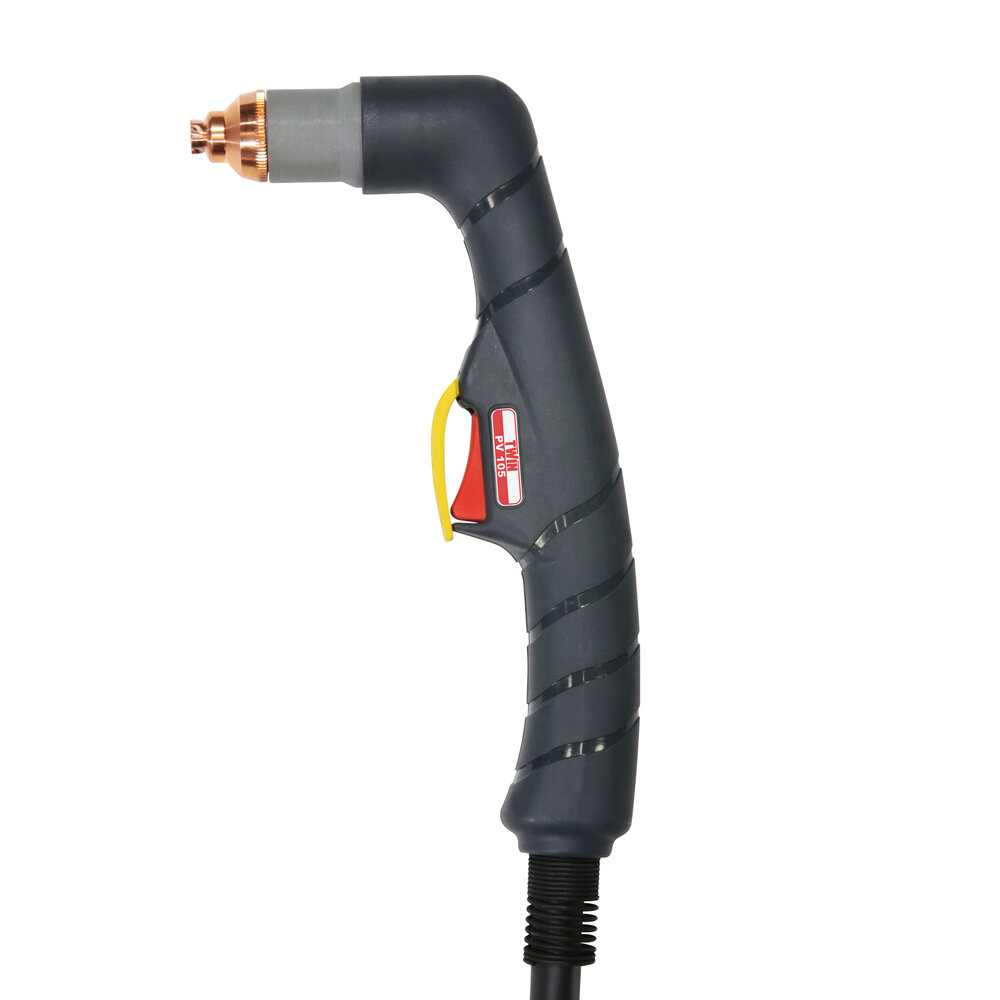

PV 105 torch for plasma cutting system with 6-metre cable (EURO connection).
Max current 105A@60% / 70A@100%.
Max cutting thickness 40 mm.
With air cooling system (5 bar pressure and 240-265 litres/min capacity).

PV 105 torch for plasma cutting system with 6-metre cable (EURO connection).
Max current 105A@60% / 70A@100%.
Max cutting thickness 40 mm.
With air cooling system (5 bar pressure and 240-265 litres/min capacity).

PV 105 torch for plasma cutting manual system with 6-metre cable with EURO connection. The torch works with a maximum current of 105A@60% / 70A@100% and can cut thicknesses up to 40 mm. With air cooling, it requires a compressed air supply with 5 bar pressure and 265 litres/min capacity. Trigger protection against accidental start-up.

CODE

804341

CABLE LENGHT

6 mm :

MAX. CURRENT

105A @60% / 70A @100% A

MAX CUTTING THICKNESS

40 mm

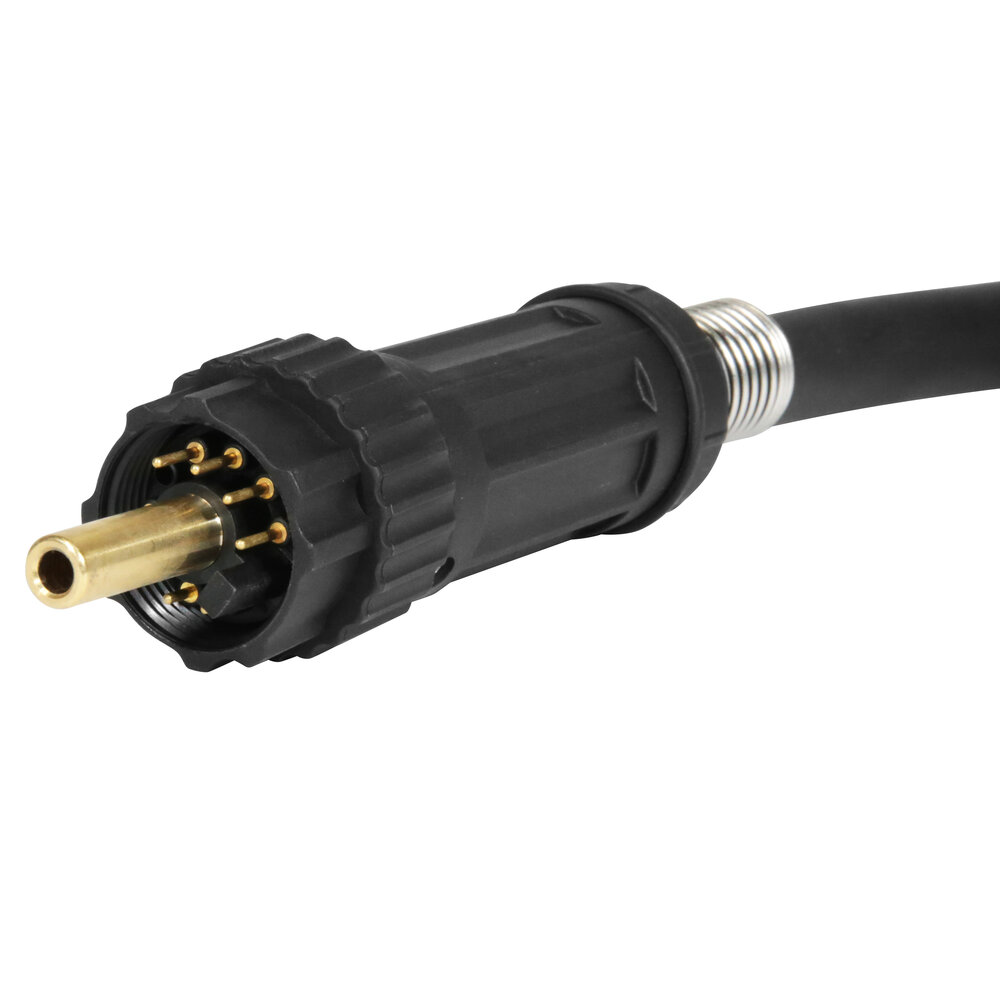

CONNECTION

EURO Connector

GAS

AIR

GAS PRESSURE

5 bar

GAS FLOW

240÷265 (l/min)

STANDARD

EN 60974-7

DIMENSIONS

500x380x75 mm

WEIGHT

2,270 kg

Catalog Image

PV105 PLASMA TORCH 6M

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PV TORCH

CONSUMABLES BOX PV XLONG

CONSUMABLES BOX HORIZONTAL CUT 105

CONSUMABLES BOX HORIZONTAL CUT 70

PLASMA CONSUMABLES STARTER KIT

STARTER KIT 85A PV 105

STARTER KIT 105A PV 105

PLASMA CONSUMABLES/SPARE PARTS

SHIELDS 20A-70A PV 2 PCS

SHIELDS 85A-105A PV 105 2 PCS

SHIELDS 20A-100A PV XLONG 2 PCS

PROLONGED SHIELDS PV 2 PCS

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

GOUGING SHIELDS 45A PV 3 PCS

KIT 5 ELECTRODES PV

ELECTRODES PV XLONG 3 PCS

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

ELECTRODES 80A-105A HORIZONTAL CUT 5 PCS

LONG ELECTRODES PV 5 PCS

NOZZLES 85A PV 105 5 PCS

NOZZLES 105A PV 105 5 PCS

GOUGING NOZZLES 105A PV 105 5 PCS

NOZZLES 45A PV XLONG 5 PCS

NOZZLES 70A PV XLONG 5 PCS

NOZZLES 100A PV XLONG 5 PCS

NOZZLES 20A-50A PV 5 PCS

NOZZLES 70A PV 5 PCS

GOUGING NOZZLES 100A PV XLONG 5 PCS

LONG NOZZLES 20A-50A PV 5 PCS

LONG NOZZLES 70A PV 5 PCS

GOUGING NOZZLES 70A PV XLONG 5 PCS

NOZZLES 80A-105A HORIZONTAL CUT 5 PCS

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

DIFFUSERS 20A-70A PV 2 PCS

DIFFUSERS 85A-105A PV 2 PCS

DIFFUSERS 80A-105A HORIZONTAL CUT 2 PCS

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

RETENTION CAP HORIZONTAL CUT

O-RING PV 10 PCS

SAFETY CAP 20A-70A PV

SAFETY CAP PV XLONG

KIT 1 SAFETY CAP 85A-105A PV 105

NOZZLES EXTRACTOR PV XLONG

RINGS PV XLONG 3 PCS

RETENTION RING HORIZONTAL CUT

CIRCULAR CUTTING UNITS

CIRCULAR CUTTING UNIT

OTHER PLASMA ACCESSORIES

MAGNETIC STRIP 1 M

PV 105 torch for plasma cutting manual system with 6-metre cable with EURO connection. The torch works with a maximum current of 105A@60% / 70A@100% and can cut thicknesses up to 40 mm. With air cooling, it requires a compressed air supply with 5 bar pressure and 265 litres/min capacity. Trigger protection against accidental start-up.

CODE

804341

CABLE LENGTH

6 mm :

MAX CURRENT

105A @60% / 70A @100% A

T04062

40 mm

T04058

EURO Connector

T04063

AIR

T04064

5 bar

T04065

240÷265 (l/min)

STANDARD

EN 60974-7

DIMENSIONS

500x380x75 mm

WEIGHT

2,270 kg

Catalog Image

PV105 PLASMA TORCH 6M

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PV TORCH

804108

CONSUMABLES BOX PV XLONG

804354

CONSUMABLES BOX HORIZONTAL CUT 105

804377

CONSUMABLES BOX HORIZONTAL CUT 70

804376

PLASMA CONSUMABLES STARTER KIT

STARTER KIT 85A PV 105

804352

STARTER KIT 105A PV 105

804353

PLASMA CONSUMABLES/SPARE PARTS

SHIELDS 20A-70A PV 2 PCS

804050

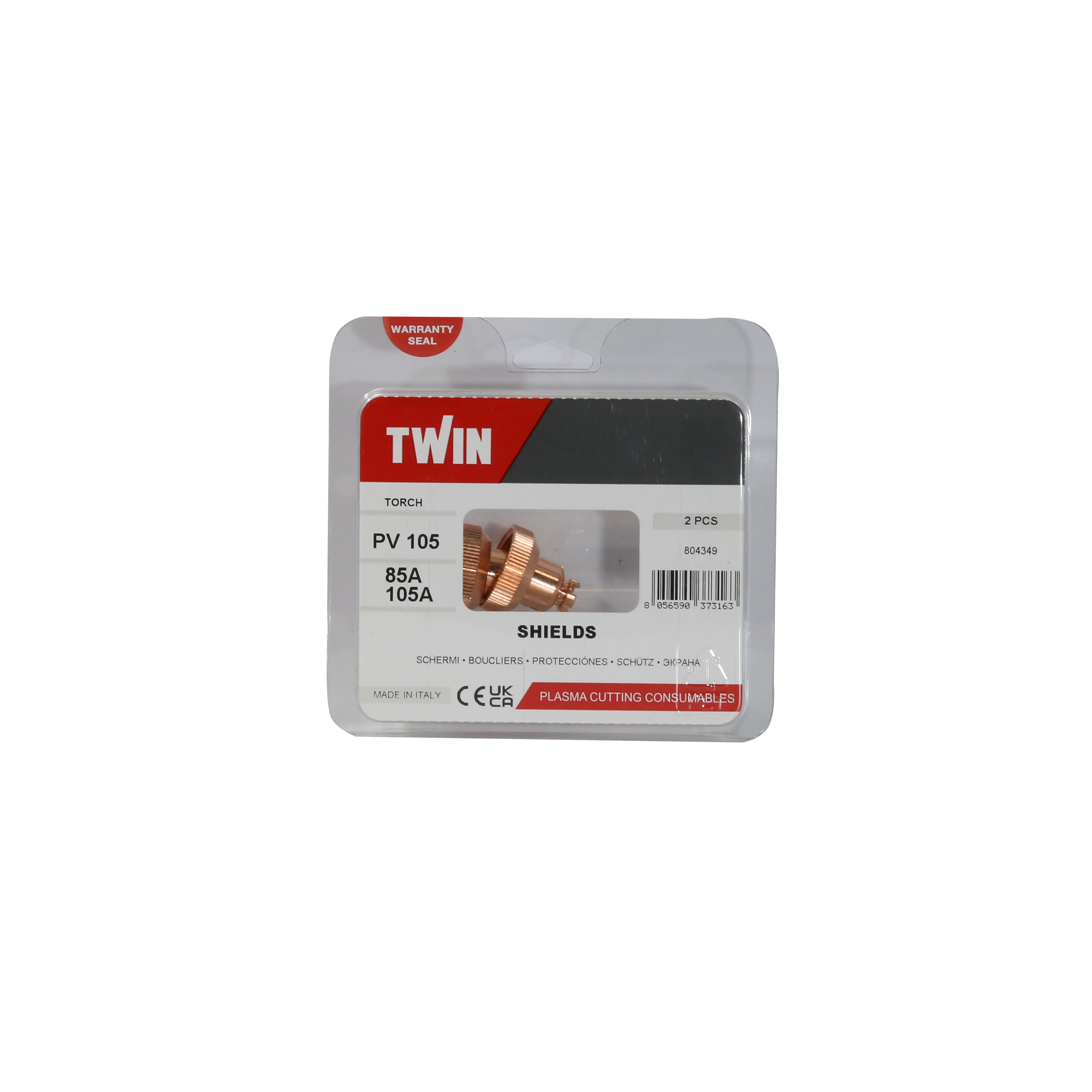

SHIELDS 85A-105A PV 105 2 PCS

804349

SHIELDS 20A-100A PV XLONG 2 PCS

804372

PROLONGED SHIELDS PV 2 PCS

804051

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

804375

GOUGING SHIELDS 45A PV 3 PCS

804061

KIT 5 ELECTRODES PV

804042

ELECTRODES PV XLONG 3 PCS

804355

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

804378

ELECTRODES 80A-105A HORIZONTAL CUT 5 PCS

804385

LONG ELECTRODES PV 5 PCS

804043

NOZZLES 85A PV 105 5 PCS

804345

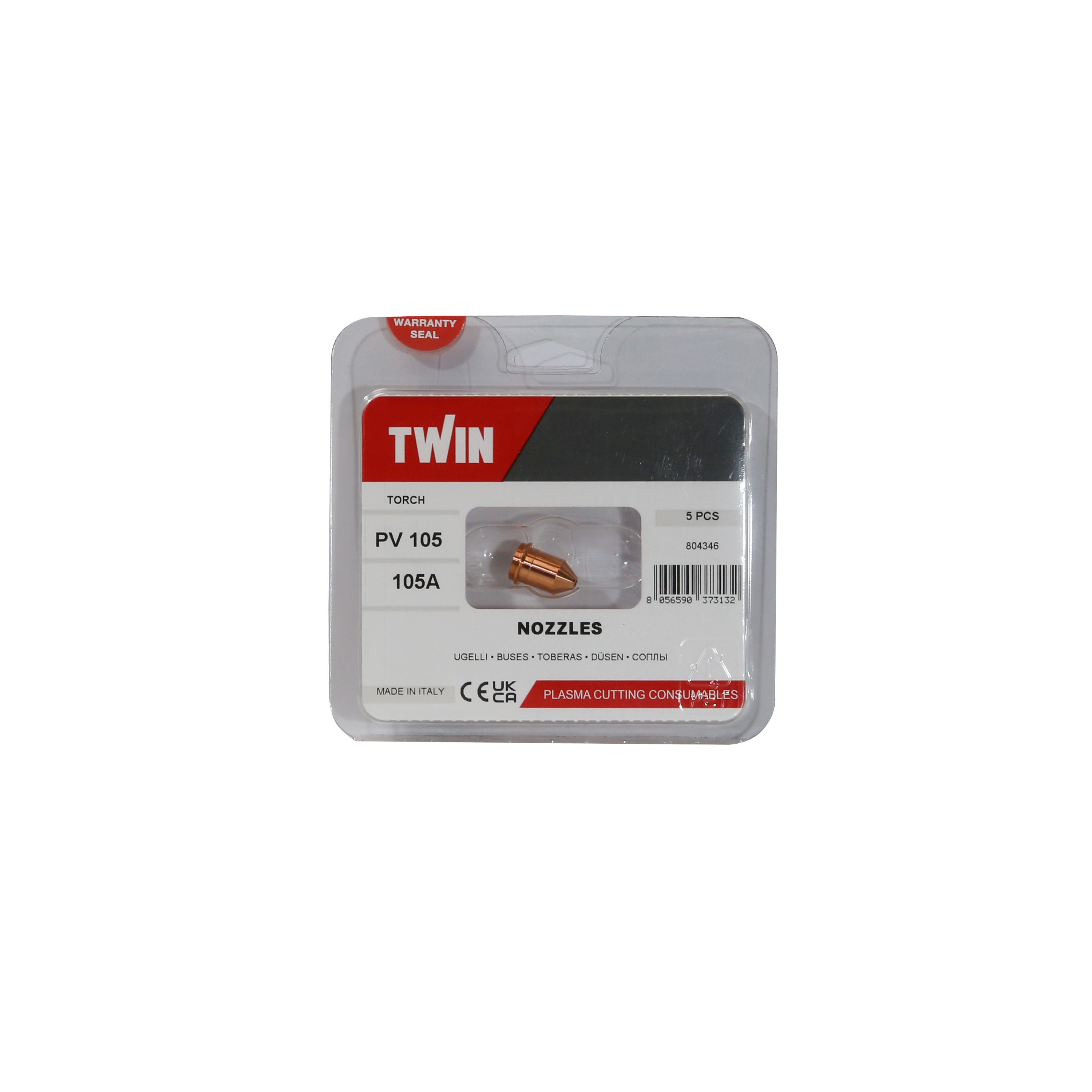

NOZZLES 105A PV 105 5 PCS

804346

GOUGING NOZZLES 105A PV 105 5 PCS

804347

NOZZLES 45A PV XLONG 5 PCS

804358

NOZZLES 70A PV XLONG 5 PCS

804359

NOZZLES 100A PV XLONG 5 PCS

804371

NOZZLES 20A-50A PV 5 PCS

804045

NOZZLES 70A PV 5 PCS

804047

GOUGING NOZZLES 100A PV XLONG 5 PCS

804374

LONG NOZZLES 20A-50A PV 5 PCS

804046

LONG NOZZLES 70A PV 5 PCS

804048

GOUGING NOZZLES 70A PV XLONG 5 PCS

804373

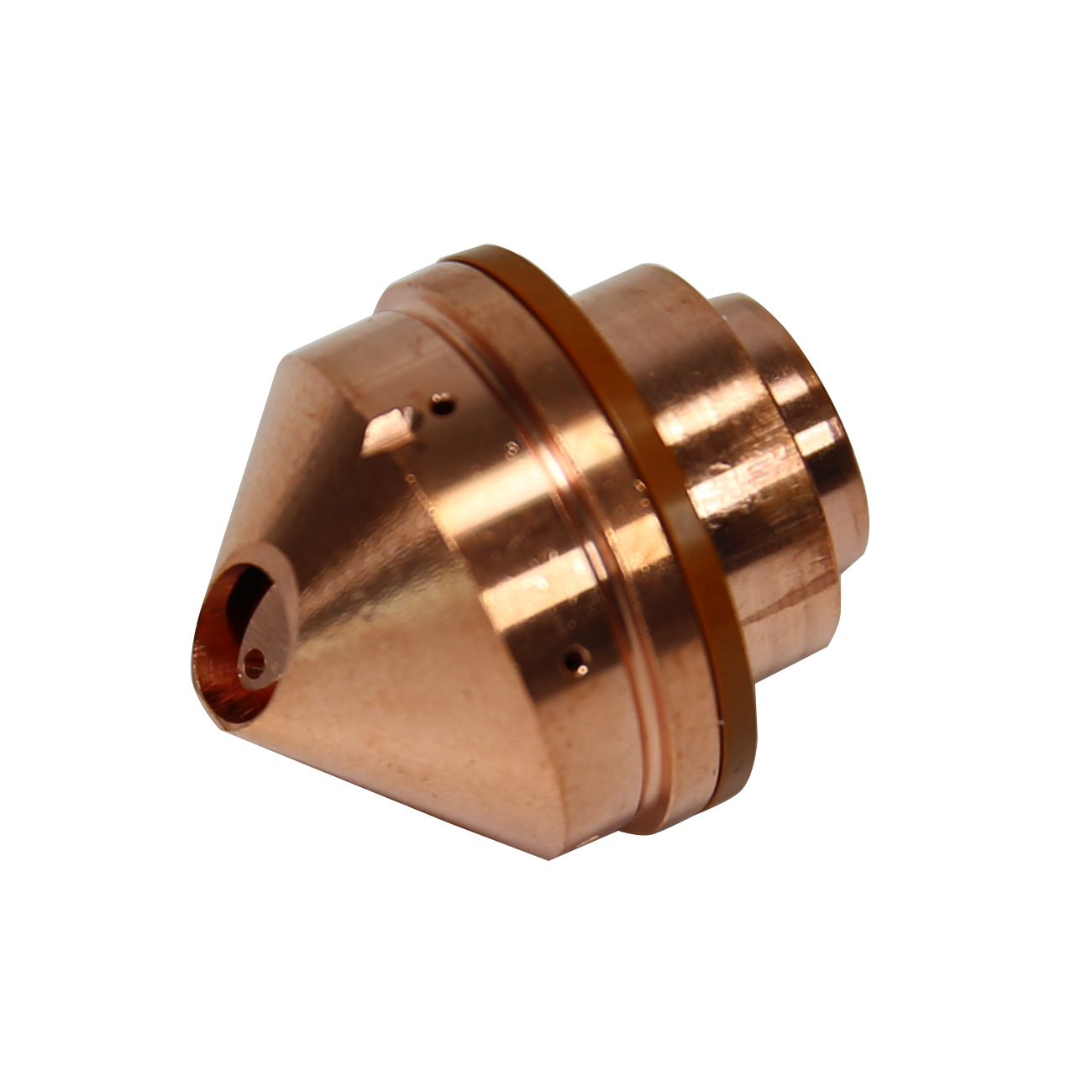

NOZZLES 80A-105A HORIZONTAL CUT 5 PCS

804386

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

804379

DIFFUSERS 20A-70A PV 2 PCS

804044

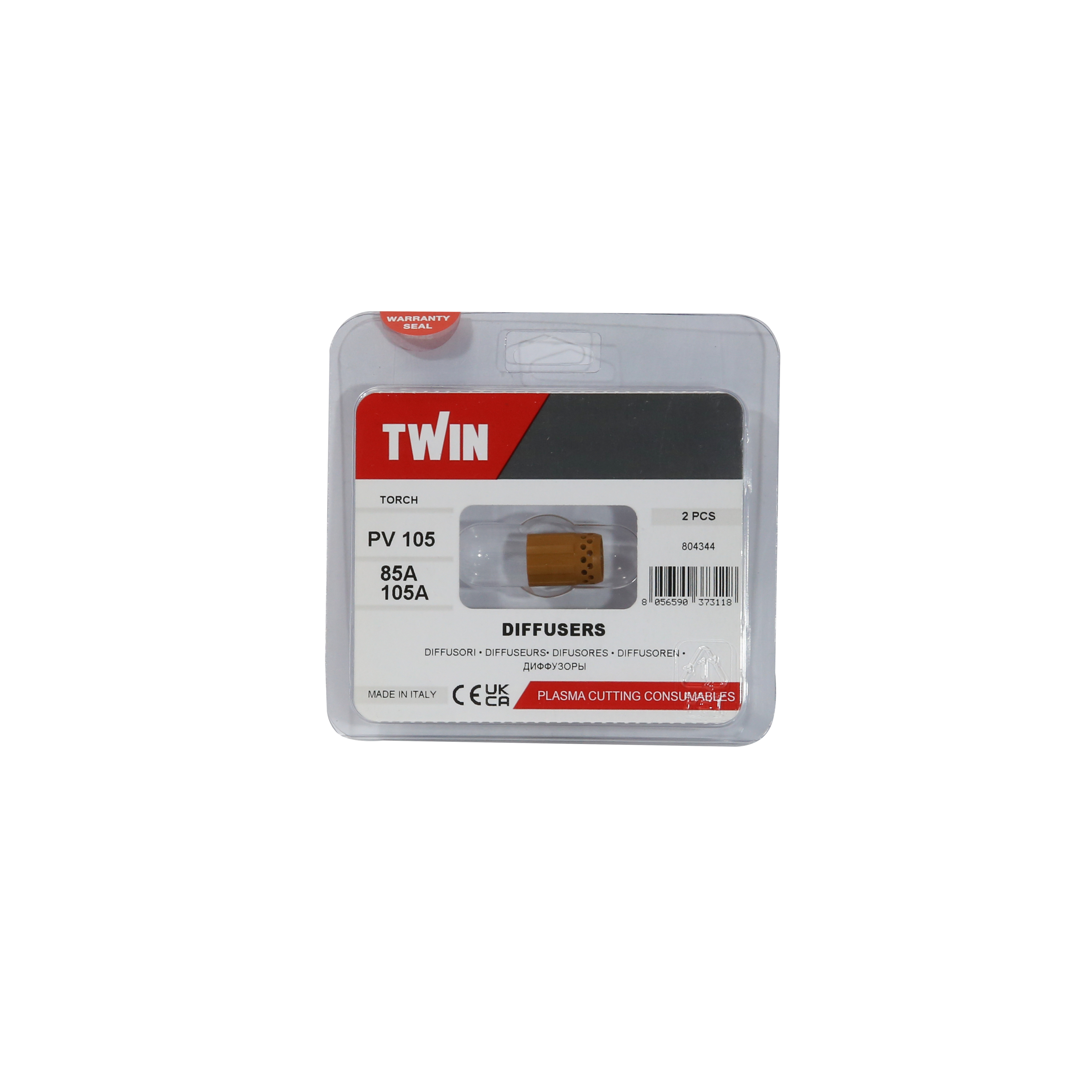

DIFFUSERS 85A-105A PV 2 PCS

804344

DIFFUSERS 80A-105A HORIZONTAL CUT 2 PCS

804387

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

804382

RETENTION CAP HORIZONTAL CUT

804383

O-RING PV 10 PCS

804052

SAFETY CAP 20A-70A PV

804049

SAFETY CAP PV XLONG

804356

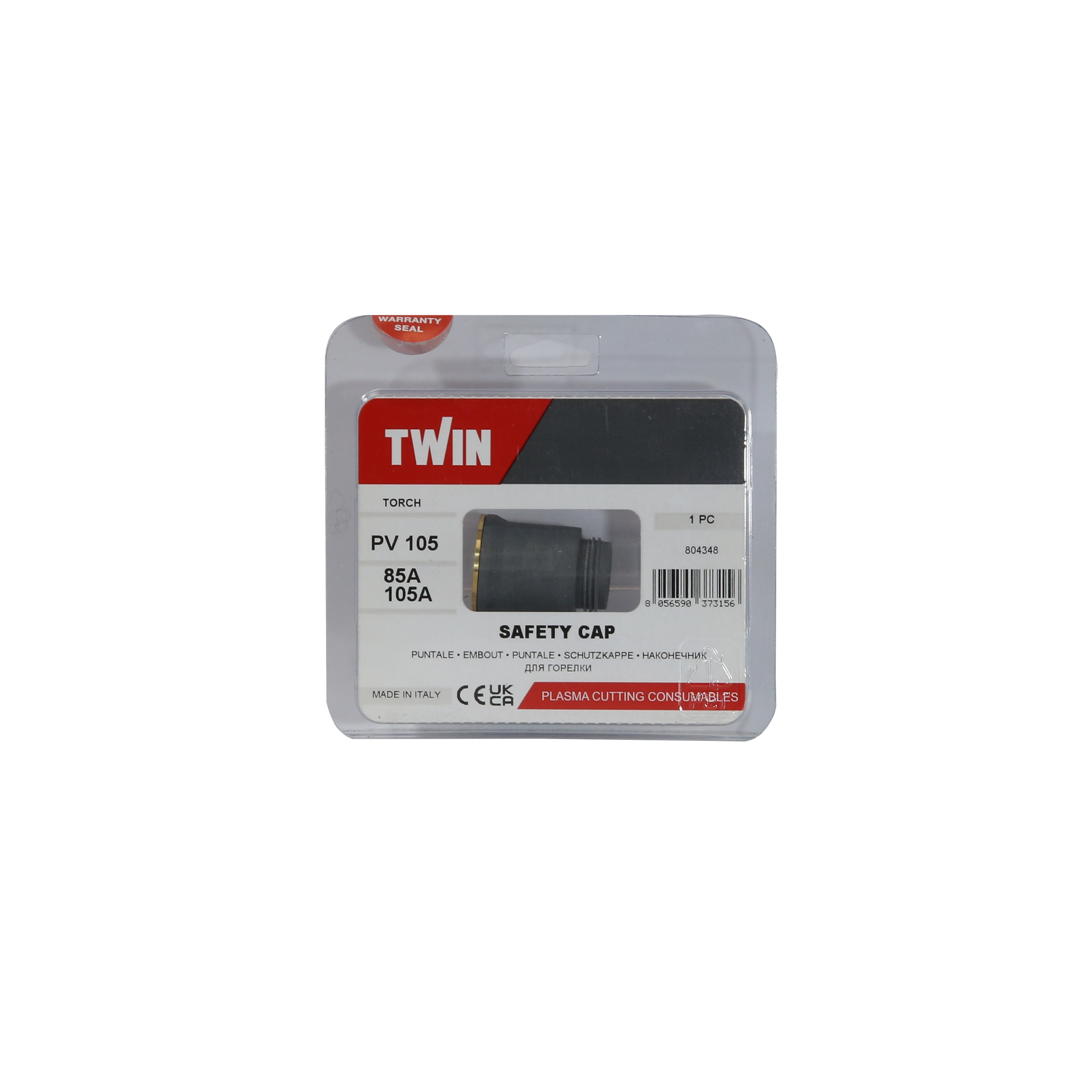

KIT 1 SAFETY CAP 85A-105A PV 105

804348

NOZZLES EXTRACTOR PV XLONG

804361

RINGS PV XLONG 3 PCS

804357

RETENTION RING HORIZONTAL CUT

804384

CIRCULAR CUTTING UNITS

CIRCULAR CUTTING UNIT

804059

OTHER PLASMA ACCESSORIES

MAGNETIC STRIP 1 M

802143
