TECHNOMIG 233 TREO SYNERGIC

Download PDF Request Info

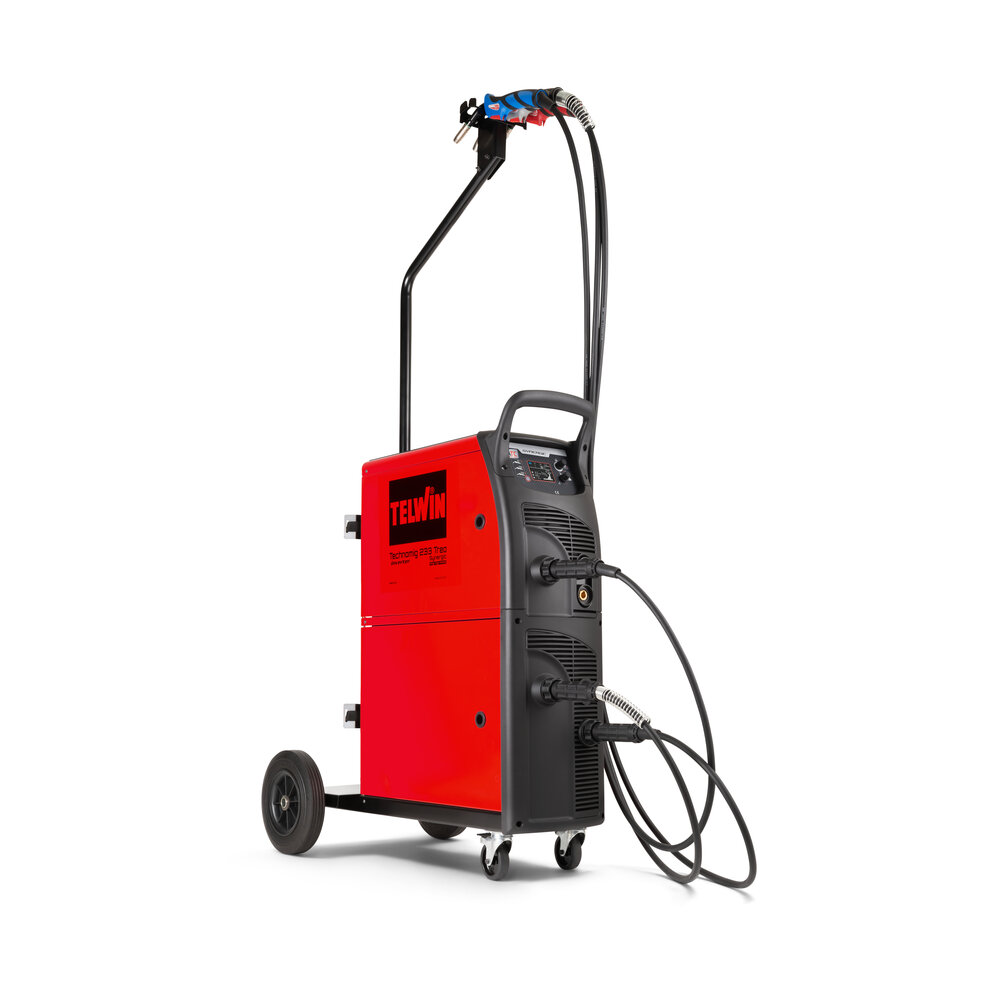

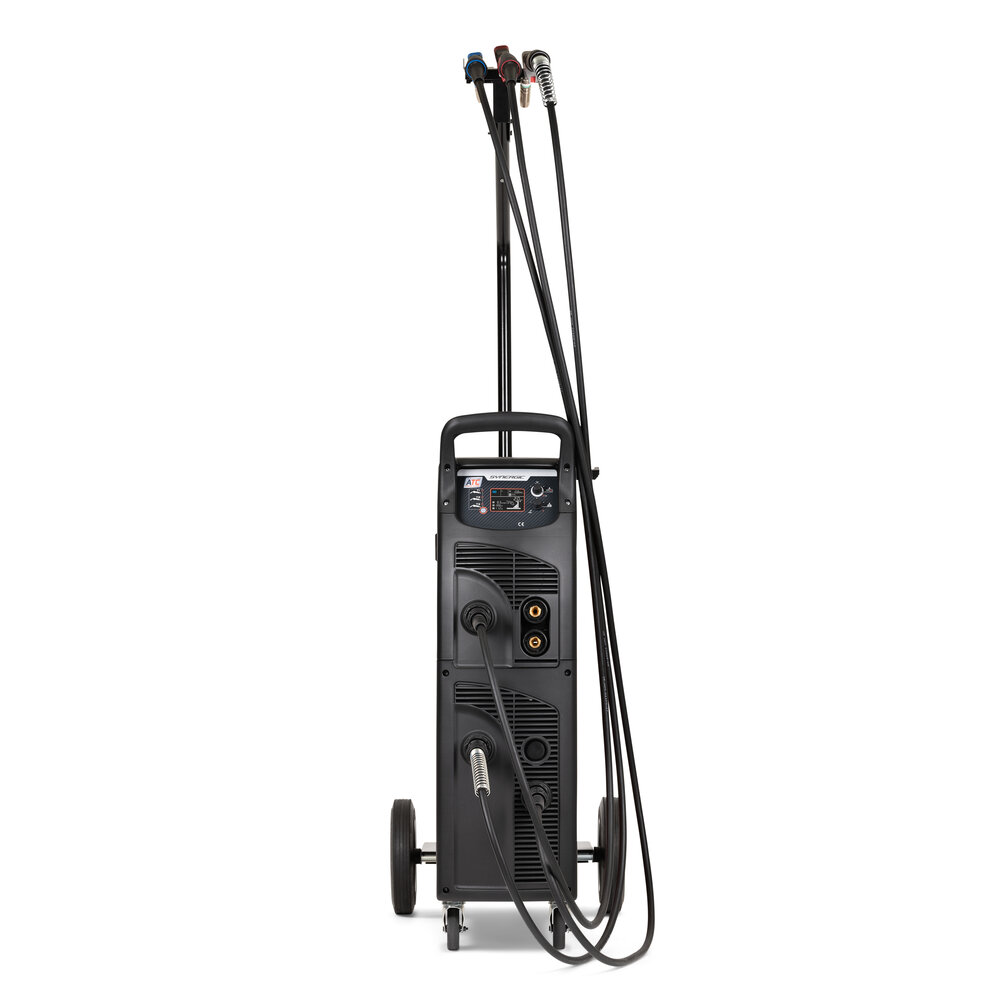

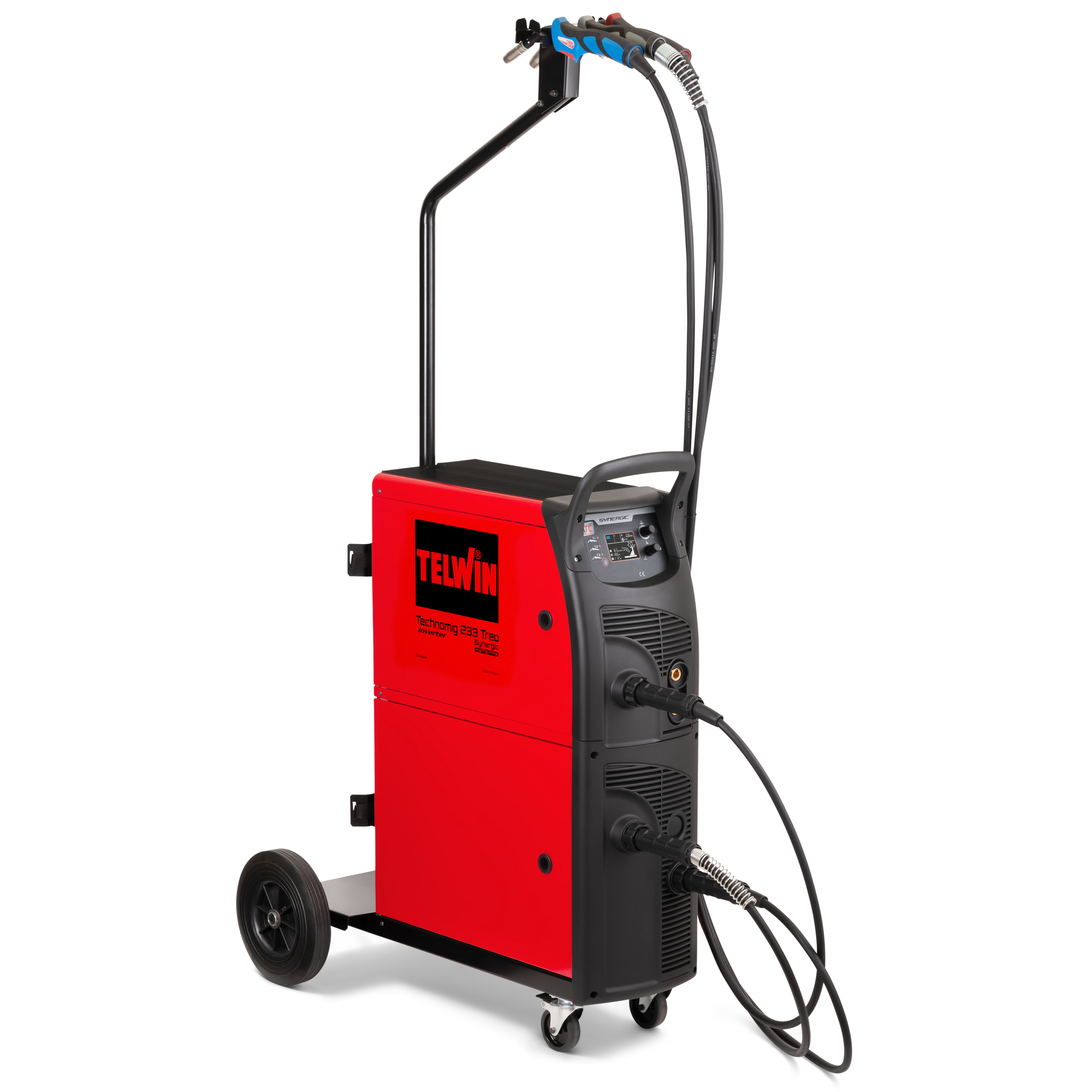

  • Multiprocess inverter welding machine (MIG-MAG/FLUX with gas/BRAZING/MMA/TIG DC-Lift), 200A. Complete with 3 torches, cable and earth clamp.
  • Immediate use of three torches with different wire types and diameters.
  • Automatic recognition of torch use.
  • Low energy absorption.
  • ATC (Advanced Thermal Control) to facilitate welding on thin materials.
  • Multiprocess inverter welding machine (MIG-MAG/FLUX with gas/BRAZING/MMA/TIG DC-Lift), 200A. Complete with 3 torches, cable and earth clamp.
  • Immediate use of three torches with different wire types and diameters.
  • Automatic recognition of torch use.
  • Low energy absorption.
  • ATC (Advanced Thermal Control) to facilitate welding on thin materials.
200A, MIG-MAG/FLUX with gas/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine complete with 3 torches. The presence of 3 MIG/MAG torches makes it possible to work with different types and diameters of wire quickly and efficiently. You can therefore switch from one material to another (steel, stainless steel, high-strength HSS steels, braze welding of galvanised sheet metal, aluminium) without changing torch or coil. The rapid synergic adjustment of welding parameters, thanks to One Touch technology, makes the product simple and intuitive to use: just set the thickness and start welding. The synergic curves load automatically according to the thickness, material and gas selected.

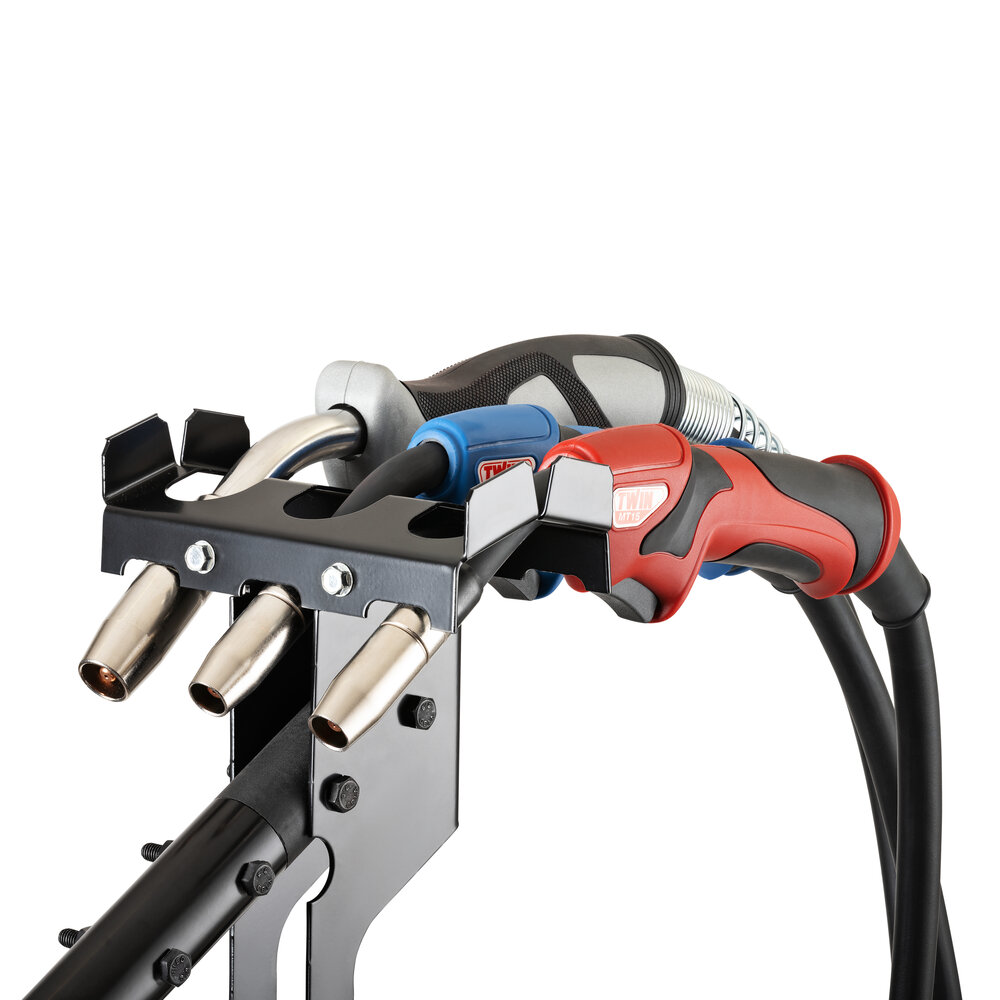

It is also possible to adjust the arc length manually: this adjustment will allow the shape of the weld bead to be modified to suit the welder’s style. The made-in-Telwin ATC technology achieves with ease excellent welds on thin thicknesses thanks to an advanced control of the arc. A simple press of the torch button automatically calls up the correct setting and related parameters for each material. Reinforced wheels give the machine stability and manoeuvrability. It is equipped with an arm as torch holder and welding mask.
Features:

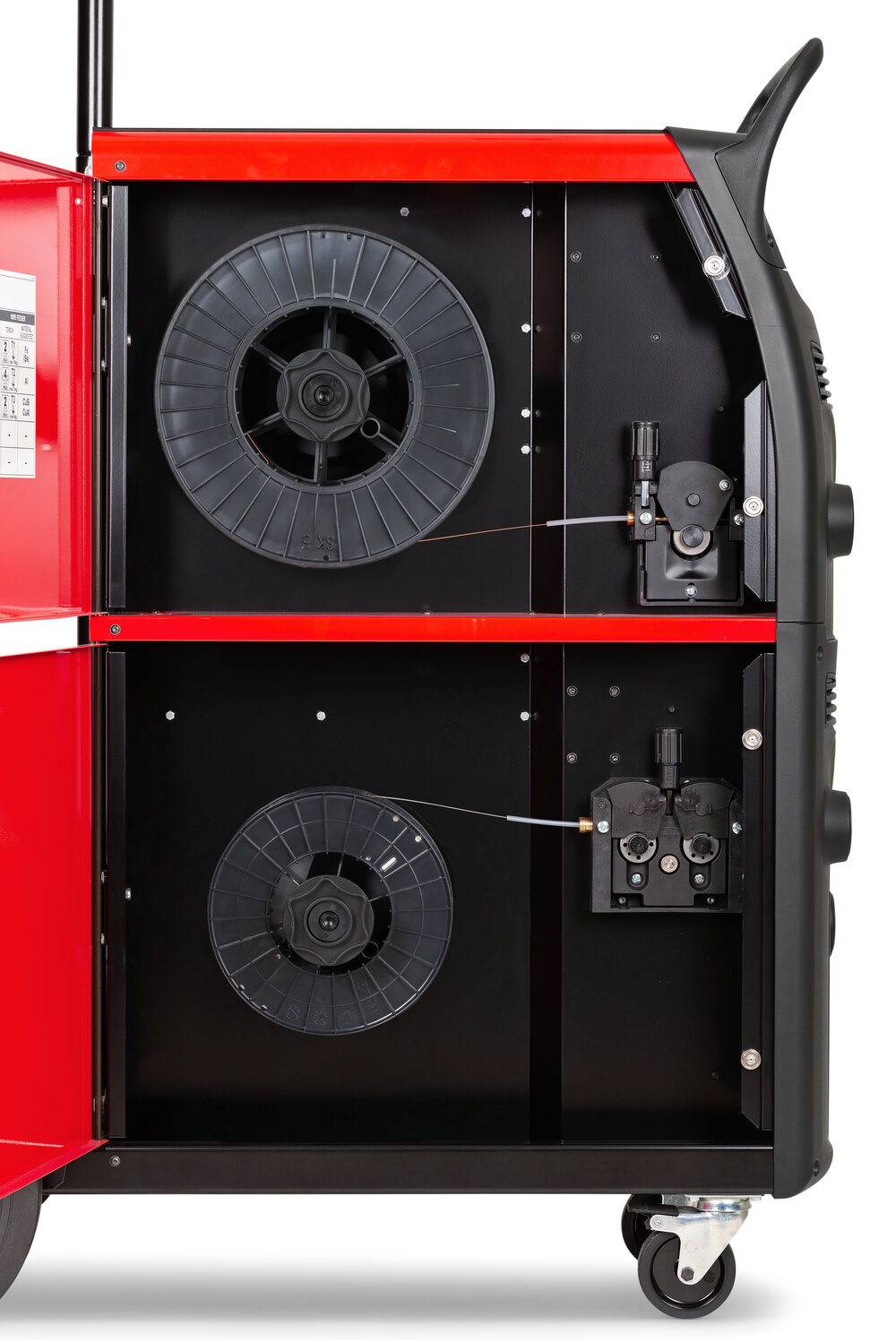

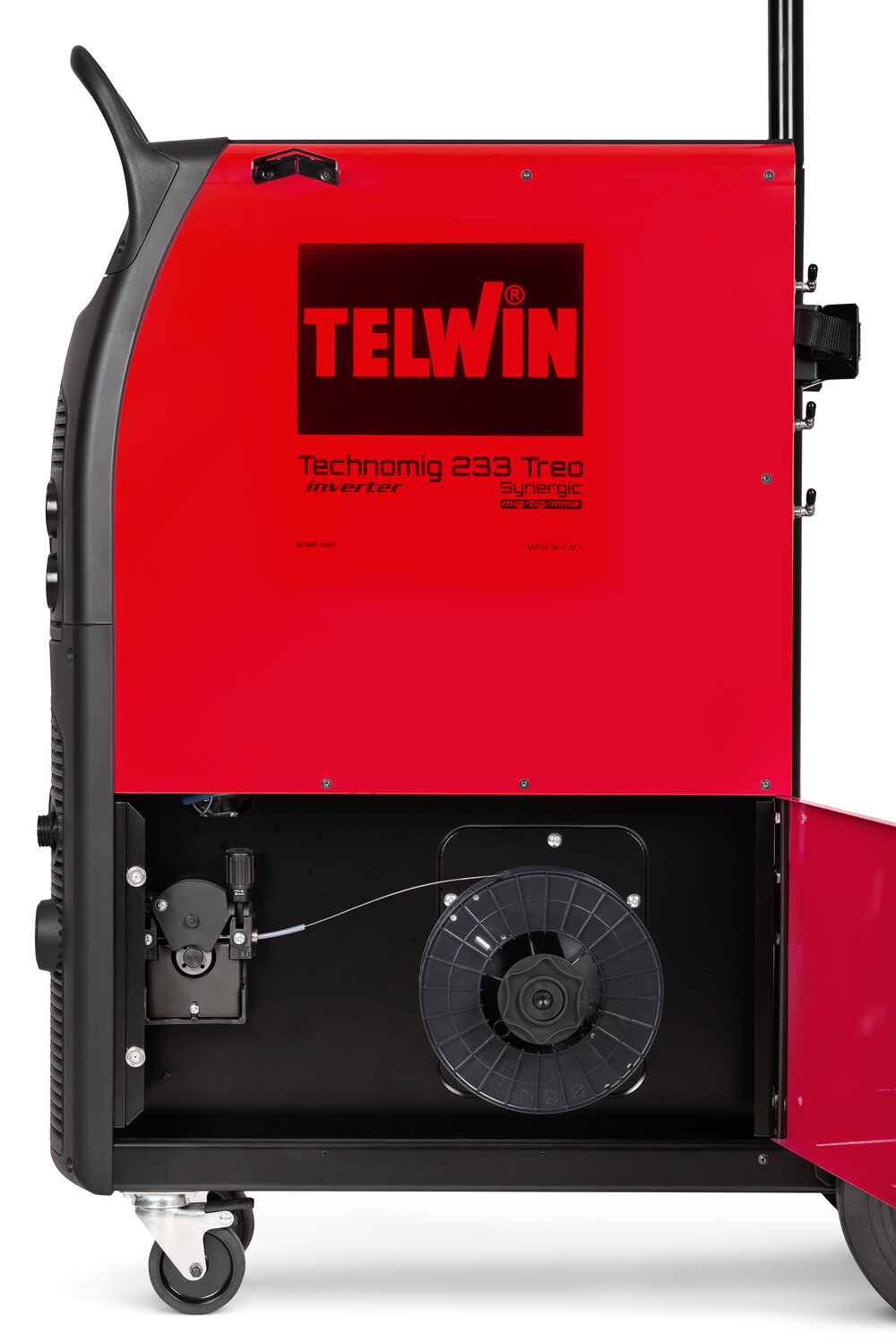

•    Supplied with 3 torches and  3 wirefeeders  (wire coils compatible Ø 200);
•    27 pre-set synergic curves;
•    simplified One-Touch adjustment: just set the thickness to start welding;

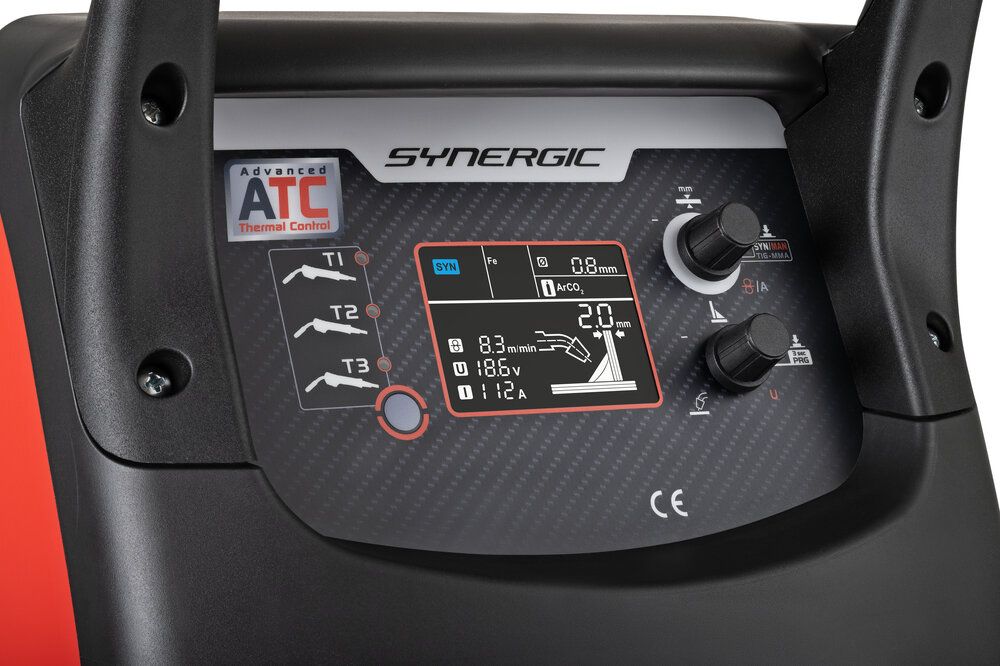

•    clear and immediate parameter display with colour LCD display;
•    Regulation of: wire speed upslope, electronic reactance, burn-back time, post gas;
•    Choice of 2/4 times, spot operation;
•    automatic detection of torch in use;
•    stable yet easily driven;
•    Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 5%) protections.

Complete with 3 MIG-MAG torches (two MT15 and one MT25), cable and clamp.


CODE

816965

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

52 V

CURRENT CONTROL RANGE DC

20 - 220 A

MAX CURRENT DC EN60974-1

180 @ 20% A

CURRENT 35% DC

135 A

DC CURRENT

100 A

MAX ABSORBED CURRENT

31 A

ABSORBED CURRENT AT 60%

15 A

MAX ABSORBED POWER

5 kW

ABSORBED POWER AT 60%

2,2 kW

EFFICIENCY

85 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS

87 x 53 x 166,5 cm

WEIGHT

61 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

200A, MIG-MAG/FLUX with gas/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine complete with 3 torches. The presence of 3 MIG/MAG torches makes it possible to work with different types and diameters of wire quickly and efficiently. You can therefore switch from one material to another (steel, stainless steel, high-strength HSS steels, braze welding of galvanised sheet metal, aluminium) without changing torch or coil. The rapid synergic adjustment of welding parameters, thanks to One Touch technology, makes the product simple and intuitive to use: just set the thickness and start welding. The synergic curves load automatically according to the thickness, material and gas selected.
It is also possible to adjust the arc length manually: this adjustment will allow the shape of the weld bead to be modified to suit the welder’s style. The made-in-Telwin ATC technology achieves with ease excellent welds on thin thicknesses thanks to an advanced control of the arc. A simple press of the torch button automatically calls up the correct setting and related parameters for each material. Reinforced wheels give the machine stability and manoeuvrability. It is equipped with an arm as torch holder and welding mask.
Features:
•    Supplied with 3 torches and  3 wirefeeders  (wire coils compatible Ø 200);
•    27 pre-set synergic curves;
•    simplified One-Touch adjustment: just set the thickness to start welding;
•    clear and immediate parameter display with colour LCD display;
•    Regulation of: wire speed upslope, electronic reactance, burn-back time, post gas;
•    Choice of 2/4 times, spot operation;
•    automatic detection of torch in use;
•    stable yet easily driven;
•    Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 5%) protections.

Complete with 3 MIG-MAG torches (two MT15 and one MT25), cable and clamp.


CODE

816965

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

52 V

CURRENT RANGE IN DC

20 - 220 A

MAX CURRENT DC EN60974-1

180 @ 20% A

CURRENT 35% DC

135 A

DC CURRENT AT 60%

100 A

MAX ABSORBED CURRENT

31 A

ABSORBED CURRENT AT 60%

15 A

MAX ABSORBED POWER

5 kW

ABSORBED POWER AT 60%

2,2 kW

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

87 x 53 x 166,5 cm

WEIGHT

61 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

MT15 MIG TORCH 3M (RED)

742180

MT25 MIG TORCH 3 M

MT15 MIG TORCH 3M (BLUE)

742944

FEED ROLL 4R 1,0AL-1,2AL "P-K"

722167

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

742984

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119
MIG/MAG WELDING KITS

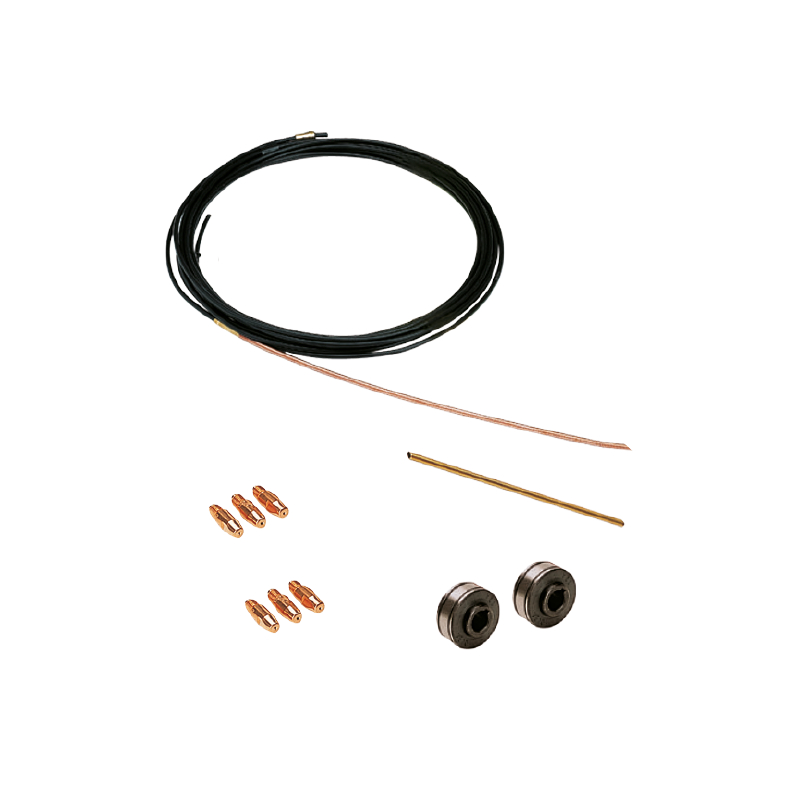

ALUMINIUM WELDING KIT D. 0,8-1 MM

802836
MIG TORCHES

MT15 MIG TORCH 4M

742181

MT15 MIG TORCH 5M

742182
TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 300A 25 MMQ 4+3M AX50

801081

ONE TOUCH TECHNOLOGY

ONE TOUCH

The ONE TOUCH synergic adjustment reduces setting times and guarantees excellent work quality. Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.

Set the material thickness and start welding!

  1. Setting of material/wire diameter/gas
  2. Thickness setting
  3. Welding parameters always clearly visible
  4. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder’s style.

Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically.

The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.

WATCH THE VIDEO

ADVANCED THERMAL CONTROL

The ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
