MT40S MIG TORCH 4M

MT40S MIG TORCH 4M

Download PDF Request Info

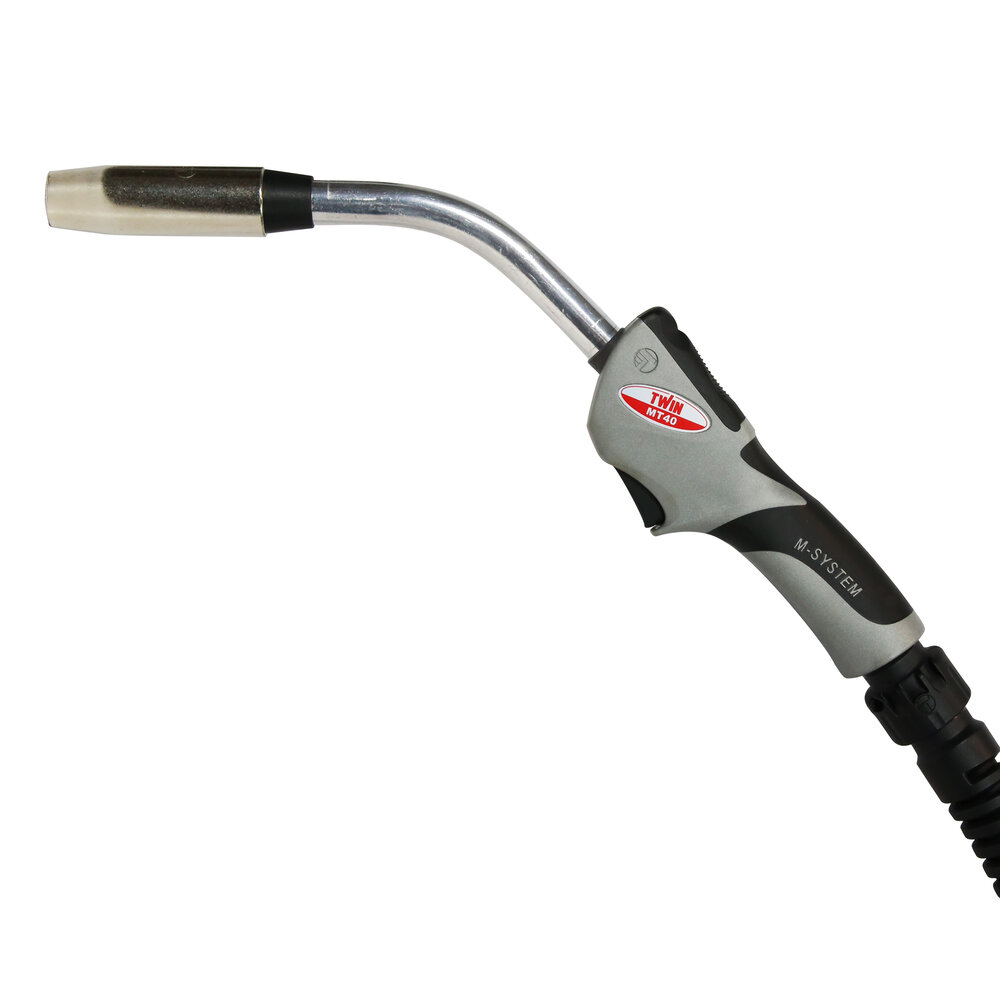

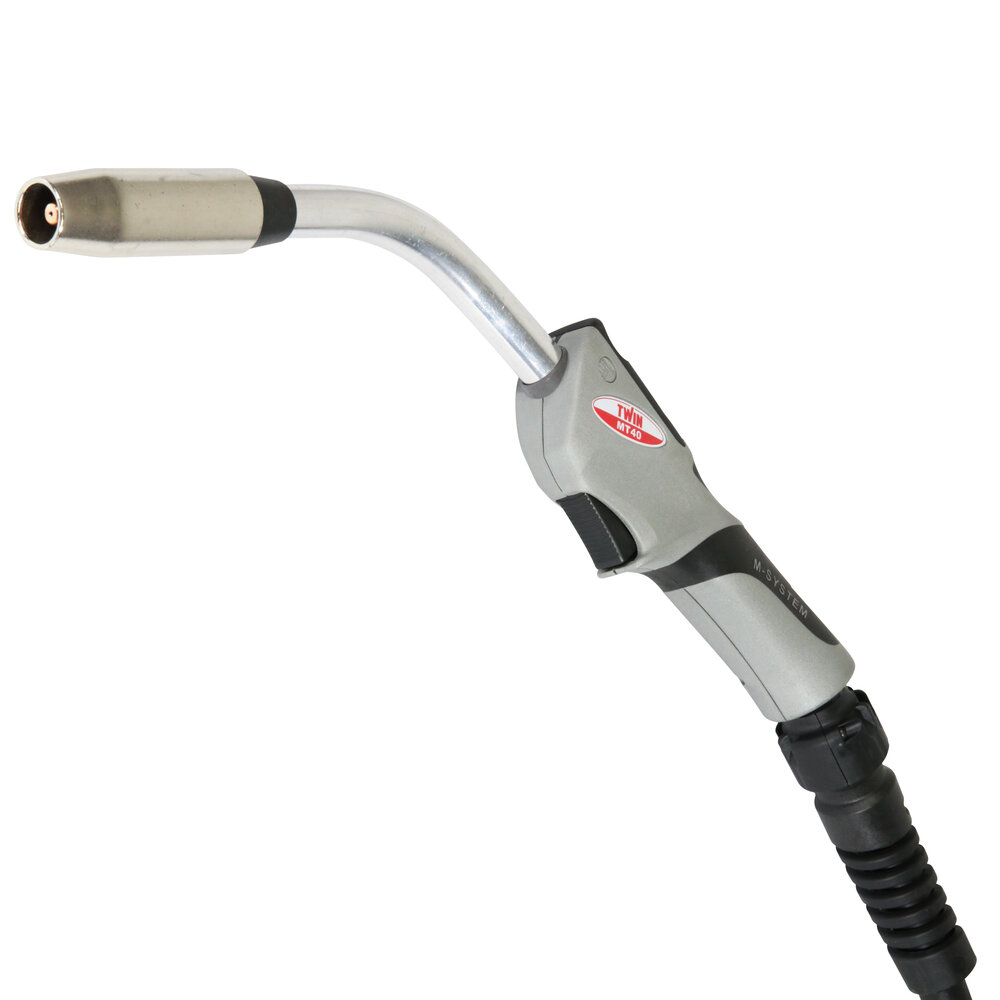

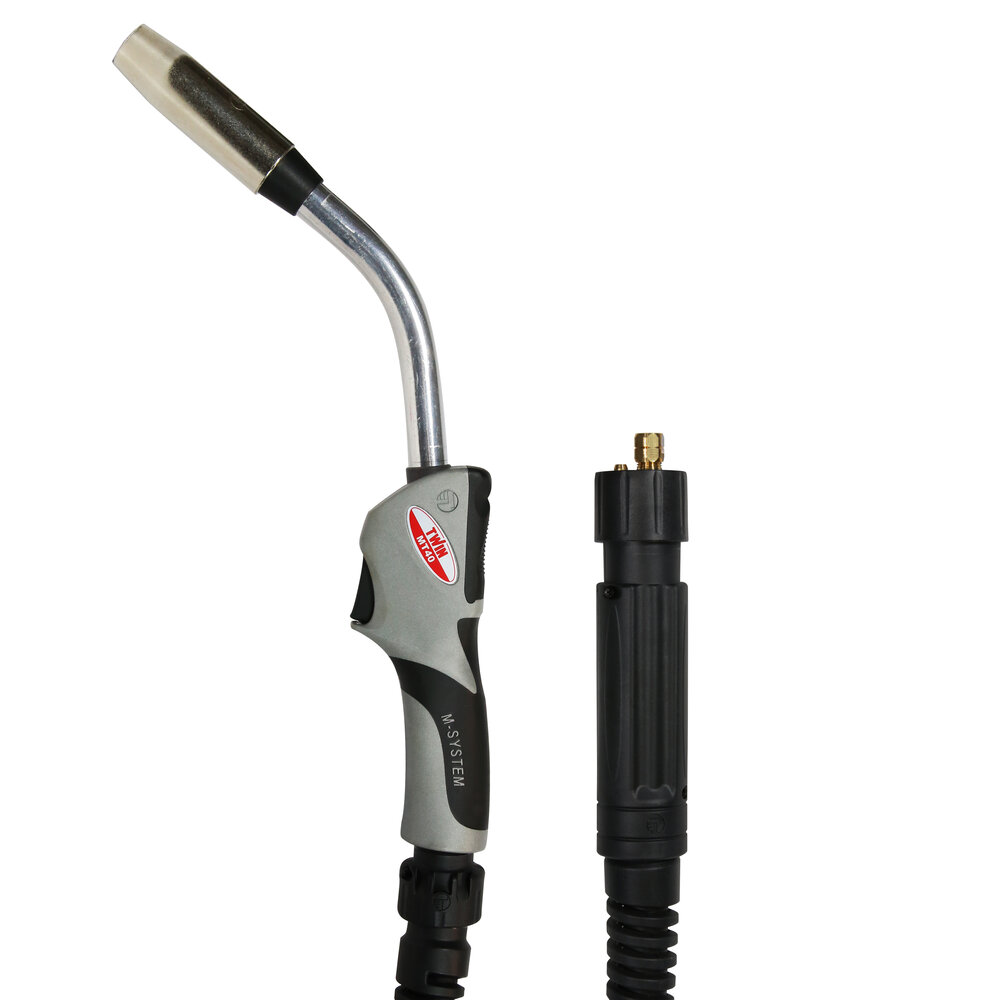

MIG torch MT40 with 4m cable (EURO connection).
Air cooling.
Max current 360A MIX / 380A CO2 @60%.

MIG torch MT40 with 4m cable (EURO connection).
Air cooling.
Max current 360A MIX / 380A CO2 @60%.

MT40 torch for MIG-MAG welding with continuous wire and 4-metre cable with EURO connector. Air cooled, it can work with maximum current 360A MIX/ 380A CO2 @60%. With 1.2 mm M9 contact tube

CODE

742820

COOLING DOWN

AIR

CABLE LENGHT

4 mm :

CABLE SECTION

65 mm²

MAX. CURRENT

360A mix / 380A co2 @60% A

CONNECTION

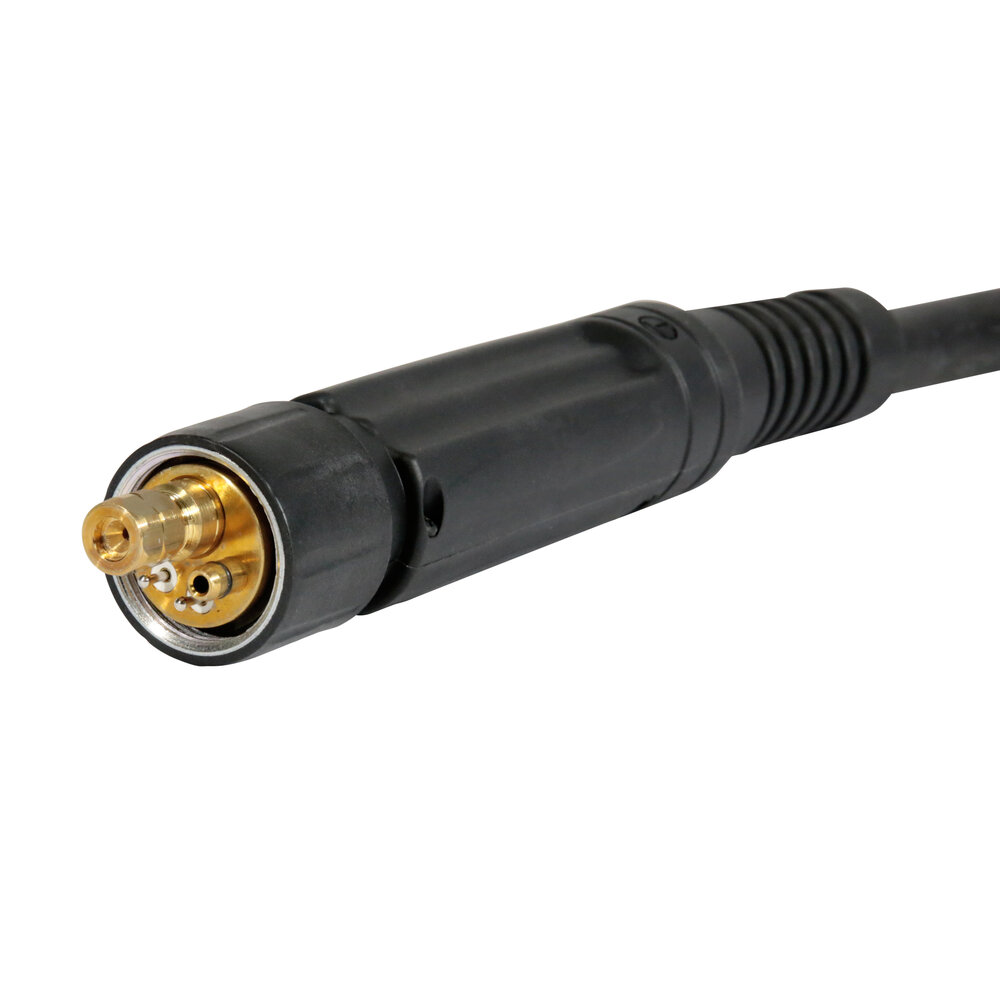

Euro Connector

REMOTE CONTROL

no

STANDARD

EN 60974-7

DIMENSIONS

580x390x80 mm

WEIGHT

4,285 kg

Catalog Image

MIG CONSUMABLES/SPARE PARTS

CONTACT TIP D. 1.0 MM (CU CR ZR)

CONTACT TIP D. 1 MM AL/FLUX

CONTACT TIP Ø 1.2 MM (CU CR ZR)

CONTACT TIP D. 1.2 MM AL/FLUX

CONTACT TIP D. 1.6 MM (CU CR ZR)

CONTACT TIP D. 1.6 MM AL/FLUX

CONTACT TIP D. 2.0 MM AL/FLUX

CONICAL NOZZLE Ø 18

CONICAL NOZZLE Ø 20

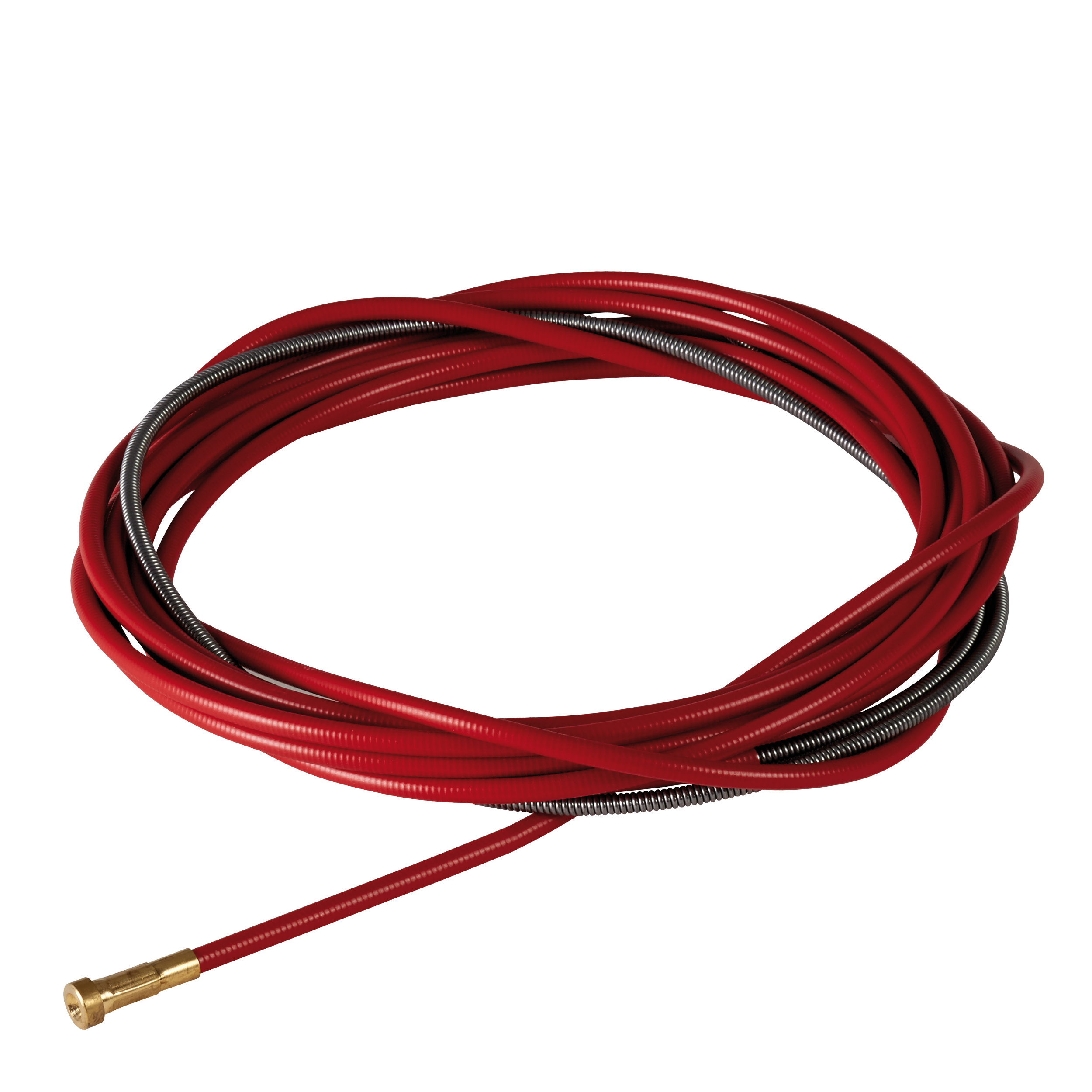

WIRE GUIDE HOSE D. 1.0-1.2 MM 4M RED

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

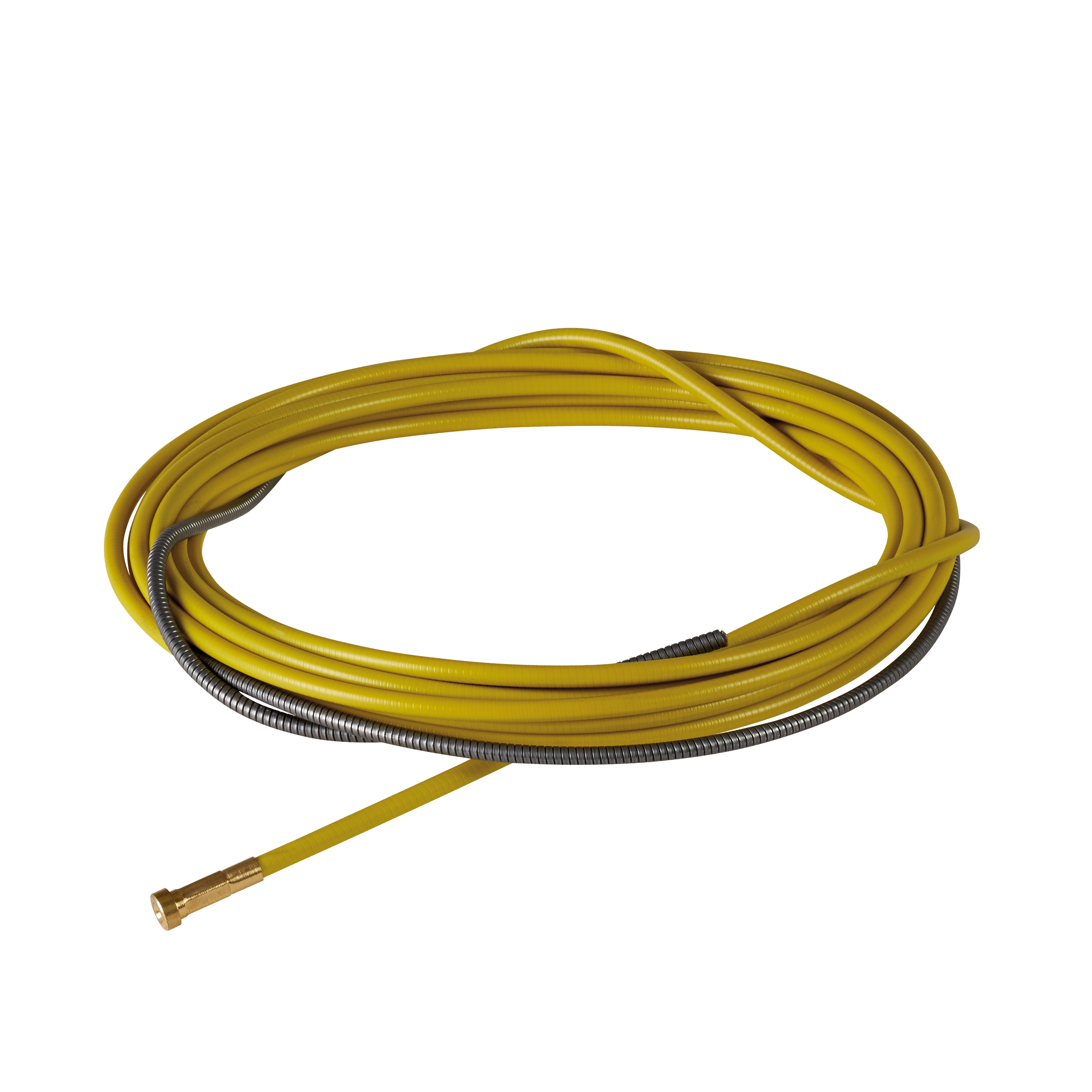

WIRE GUIDE HOSE D.1.2-1.6 MM 4M YELLOW

WIRE GUIDE HOSE Ø 1,6-2,0 AL TEFLON

SWAN NECK

GAS DIFFUSER

BLISTER ACCESSORIES

MIG-MAG TORCH MAGNETIC HOLDER

MT40 torch for MIG-MAG welding with continuous wire and 4-metre cable with EURO connector. Air cooled, it can work with maximum current 360A MIX/ 380A CO2 @60%. With 1.2 mm M9 contact tube

CODE

742820

COOLING

AIR

CABLE LENGTH

4 mm :

T04050

65 mm²

MAX CURRENT

360A mix / 380A co2 @60% A

T04058

Euro Connector

T04053

no

STANDARD

EN 60974-7

DIMENSIONS

580x390x80 mm

WEIGHT

4,285 kg

Catalog Image

MIG CONSUMABLES/SPARE PARTS

CONTACT TIP D. 1.0 MM (CU CR ZR)

742818

CONTACT TIP D. 1 MM AL/FLUX

742824

CONTACT TIP Ø 1.2 MM (CU CR ZR)

742819

CONTACT TIP D. 1.2 MM AL/FLUX

742825

CONTACT TIP D. 1.6 MM (CU CR ZR)

742823

CONTACT TIP D. 1.6 MM AL/FLUX

742826

CONTACT TIP D. 2.0 MM AL/FLUX

742827

CONICAL NOZZLE Ø 18

742831

CONICAL NOZZLE Ø 20

742832

WIRE GUIDE HOSE D. 1.0-1.2 MM 4M RED

742833

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

742812

WIRE GUIDE HOSE D.1.2-1.6 MM 4M YELLOW

742834

WIRE GUIDE HOSE Ø 1,6-2,0 AL TEFLON

742811

SWAN NECK

742829

GAS DIFFUSER

742830

BLISTER ACCESSORIES

MIG-MAG TORCH MAGNETIC HOLDER

804128
