MT36 MIG TORCH 4M

MT36 MIG TORCH 4M

Download PDF Request Info

MIG torch MT36 with 4m cable (EURO connection).
Air cooling.
Max current 320A MIX / 340A CO2 @60%.

MIG torch MT36 with 4m cable (EURO connection).
Air cooling.
Max current 320A MIX / 340A CO2 @60%.

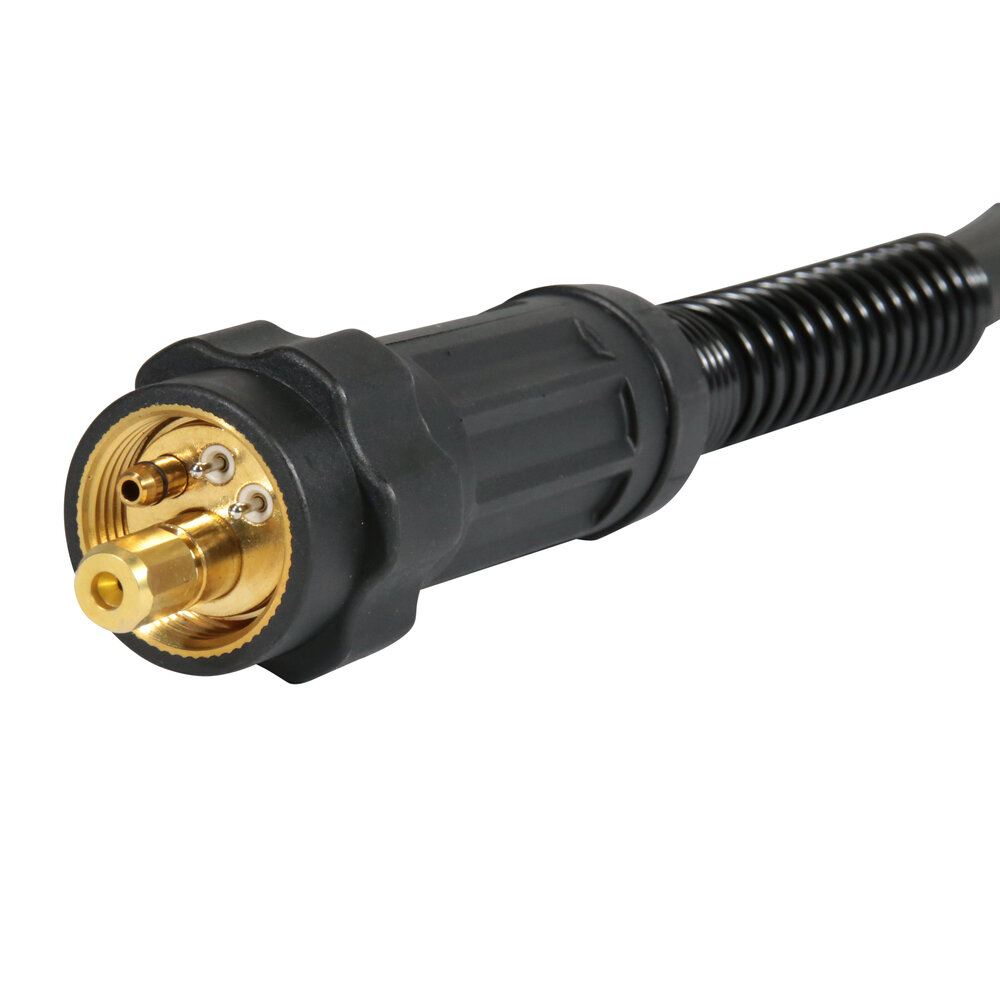

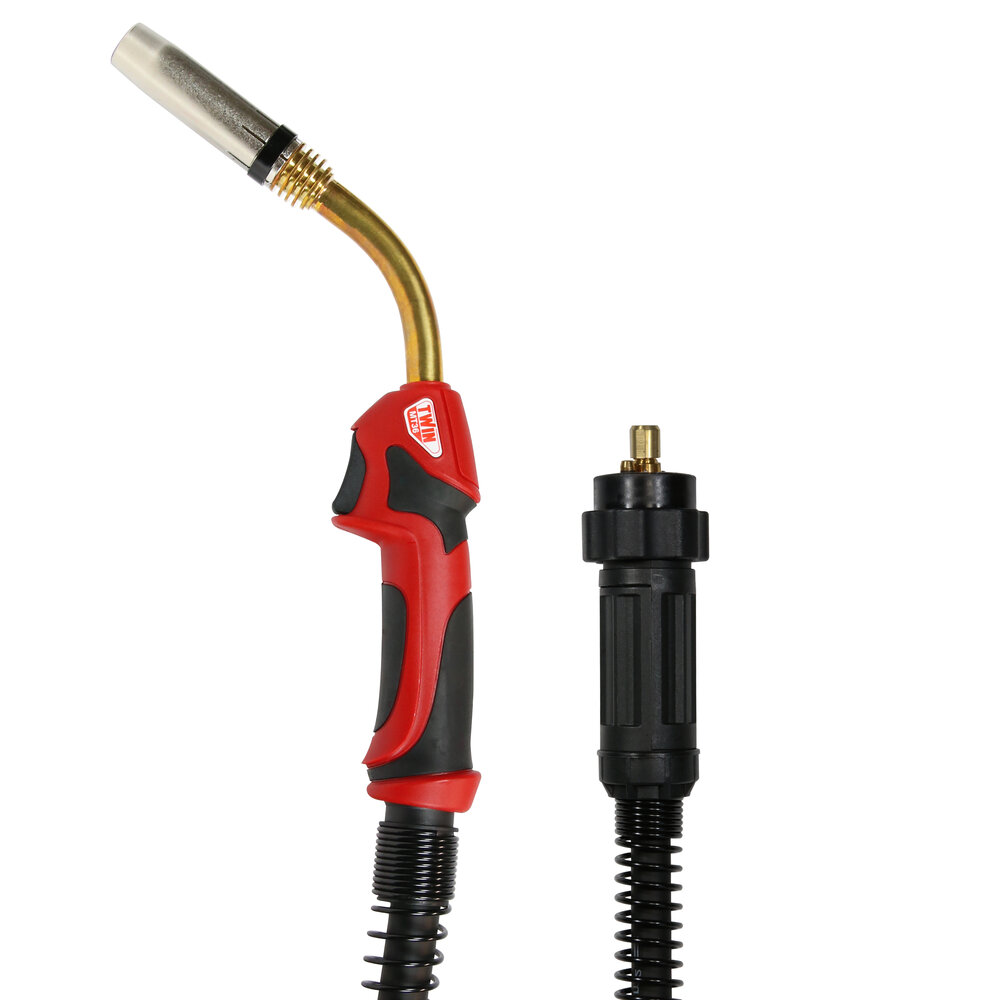

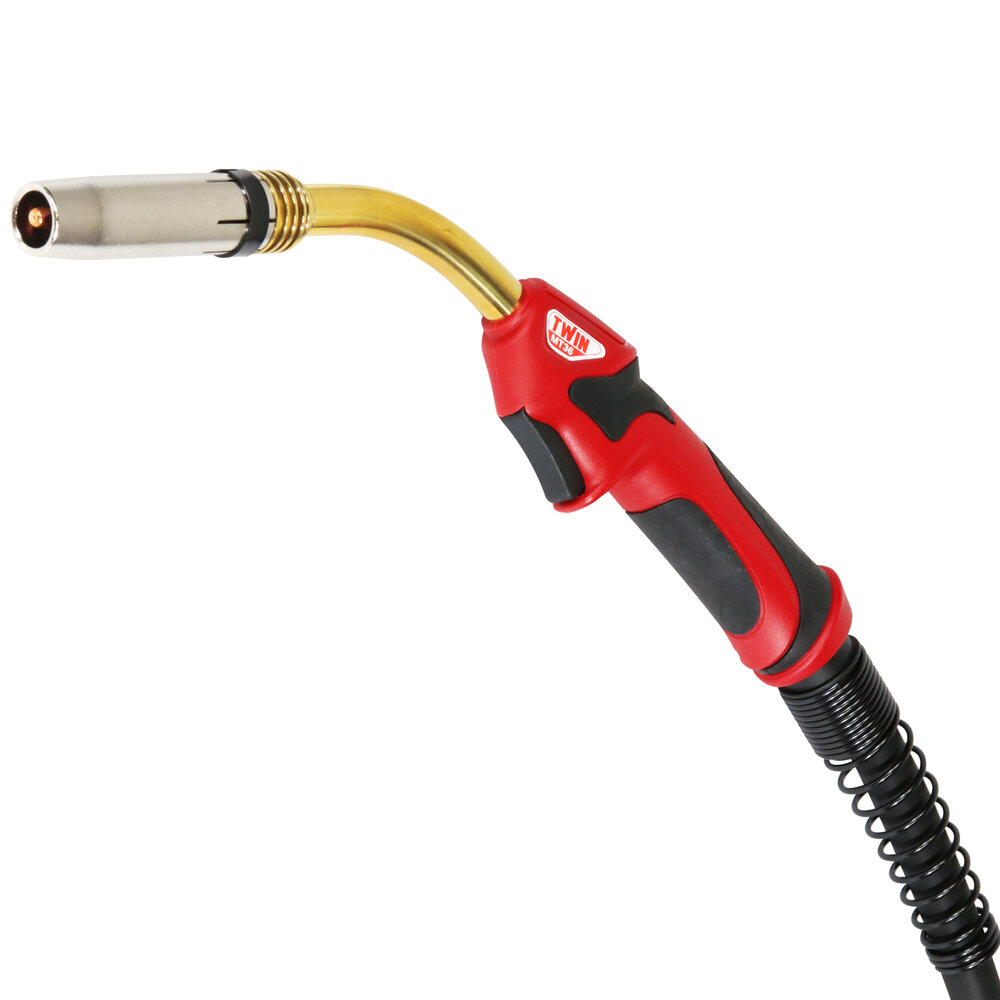

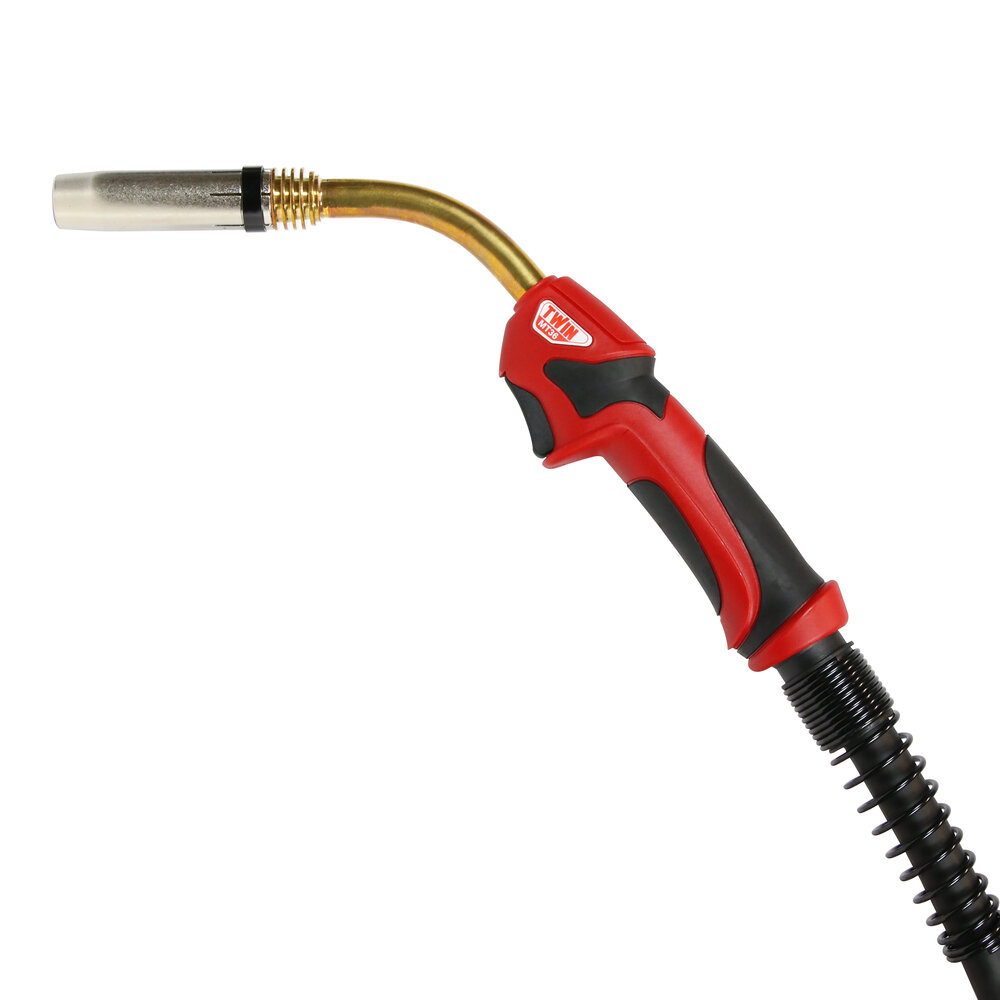

MT36 torch for MIG-MAG welding with continuous wire and 4-metre cable with EURO connector. Air cooled, it can work with maximum current 320A MIX/ 340A CO2 @60%. With 0.8 mm M6 contact tube.

CODE

742187

COOLING DOWN

AIR

CABLE LENGHT

4 mm :

CABLE SECTION

50 mm²

MAX. CURRENT

320A mix / 340A co2 @60% A

CONNECTION

EURO Connector

REMOTE CONTROL

no

STANDARD

EN 60974-7

WEIGHT

3,800 kg

Catalog Image

MIG CONSUMABLES/SPARE PARTS

CONTACT TIP Ø 0,8 MM M6

CONTACT TIP D. 0,8 MM AL (CU, CR, ZR)

CONTACT TIP Ø 1 MM FE M6 L=28MM

CONTACT TIP Ø 1.0 (CU CR ZR)

CONTACT TIP Ø 1.2 MM FE

CONTACT TIP Ø 1,2 MM AL (CU, CR, ZR)

CONTACT TIP Ø 1,6 MM FE

CONTACT TIP Ø 1,6 MM AL/FLUX M6

CONICAL NOZZLE MT36

THIN HEADED NOZZLE MT36

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

WIRE GUIDE HOSE Ø 1,6-2,0 AL TEFLON

WIRE GUIDE HDSE D. 0,6-0,8 MM 5 M BLUE

WIRE GUIDE HOSE D. 1,0-1,2 MM 5 M RED

WIRE GUIDE HOSE D. 1,2-1,6 MM 5 M YELLOW

SWAN NECK MT36

INSULATING GAS DIFFUSER MT 36

CONTACT TIP HOLDER MT36

BLISTER ACCESSORIES

MIG-MAG TORCH MAGNETIC HOLDER

CONTACT TIPS D.0.6 5PCS

KIT 5 CONTACT TIPS D.1.0 MM AL/FLUX

KIT 5 CONTACT TIPS D 0.8 AL/FLUX

KIT 5 CONTACT TIPS D.1,2 AL/FLUX

MT36 torch for MIG-MAG welding with continuous wire and 4-metre cable with EURO connector. Air cooled, it can work with maximum current 320A MIX/ 340A CO2 @60%. With 0.8 mm M6 contact tube.

CODE

742187

COOLING

AIR

CABLE LENGTH

4 mm :

T04050

50 mm²

MAX CURRENT

320A mix / 340A co2 @60% A

T04058

EURO Connector

T04053

no

STANDARD

EN 60974-7

WEIGHT

3,800 kg

Catalog Image

MIG CONSUMABLES/SPARE PARTS

CONTACT TIP Ø 0,8 MM M6

722680

CONTACT TIP D. 0,8 MM AL (CU, CR, ZR)

742466

CONTACT TIP Ø 1 MM FE M6 L=28MM

722681

CONTACT TIP Ø 1.0 (CU CR ZR)

742467

CONTACT TIP Ø 1.2 MM FE

722682

CONTACT TIP Ø 1,2 MM AL (CU, CR, ZR)

742468

CONTACT TIP Ø 1,6 MM FE

722797

CONTACT TIP Ø 1,6 MM AL/FLUX M6

722818

CONICAL NOZZLE MT36

722792

THIN HEADED NOZZLE MT36

722793

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

742984

WIRE GUIDE HOSE Ø 1.0-1.2 4M AL

742812

WIRE GUIDE HOSE Ø 1,6-2,0 AL TEFLON

742811

WIRE GUIDE HDSE D. 0,6-0,8 MM 5 M BLUE

722712

WIRE GUIDE HOSE D. 1,0-1,2 MM 5 M RED

722766

WIRE GUIDE HOSE D. 1,2-1,6 MM 5 M YELLOW

722796

SWAN NECK MT36

722788

INSULATING GAS DIFFUSER MT 36

722791

CONTACT TIP HOLDER MT36

722789

BLISTER ACCESSORIES

MIG-MAG TORCH MAGNETIC HOLDER

804128

CONTACT TIPS D.0.6 5PCS

804084

KIT 5 CONTACT TIPS D.1.0 MM AL/FLUX

804086

KIT 5 CONTACT TIPS D 0.8 AL/FLUX

804087

KIT 5 CONTACT TIPS D.1,2 AL/FLUX

804088
