SUPERIOR TIG 422

Add to comparison

SUPERIOR TIG 422

Download PDF Request Info

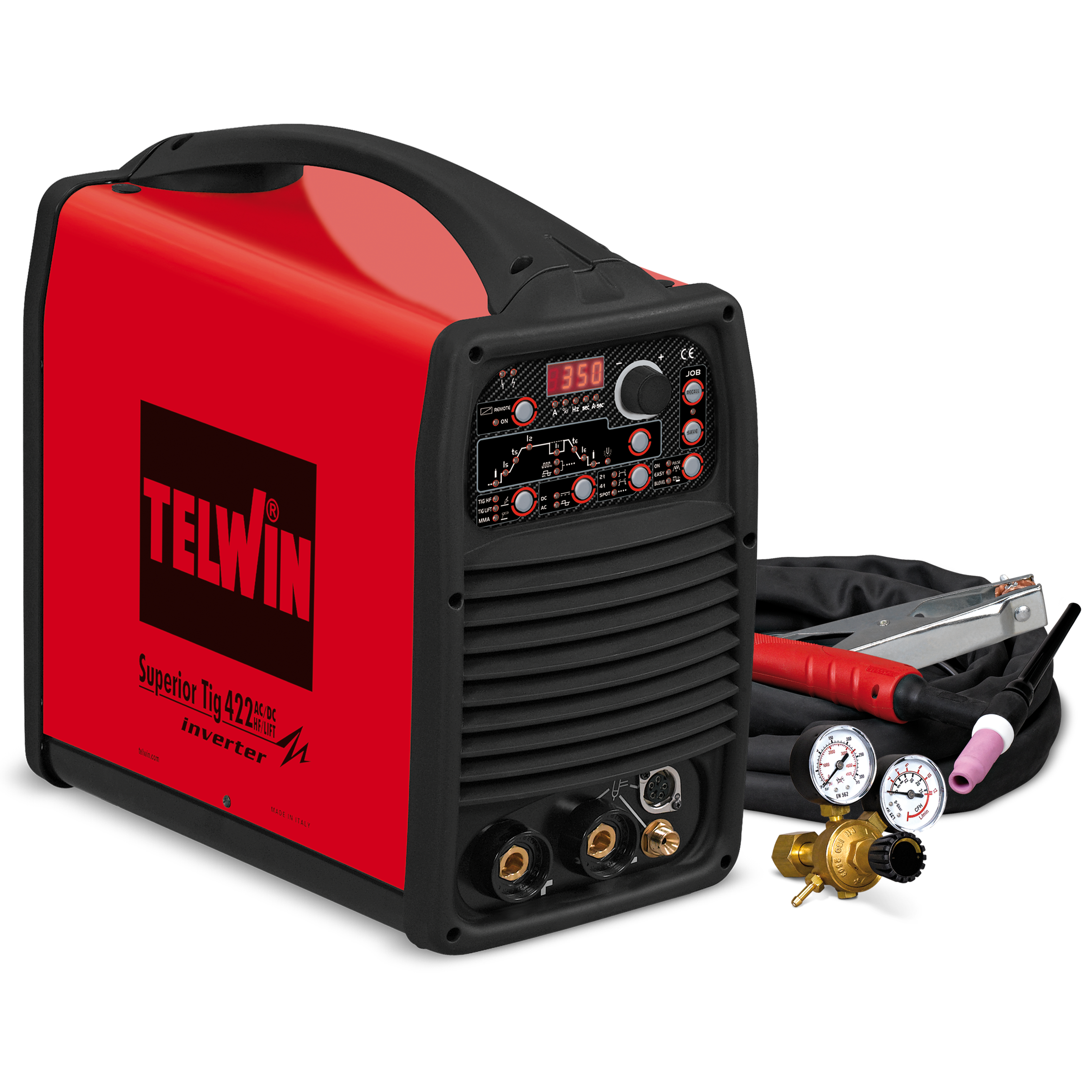

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories.

CODE

816134

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

5 - 350 A

MAX CURRENT

350 @ 35 % A

DC CURRENT

250 A

MAX NO LOAD VOLTAGE

64 V

MAX ABSORBED CURRENT

21 A

ABSORBED CURRENT AT 60%

13 A

MAX ABSORBED POWER

14 kW

ABSORBED POWER AT 60%

8 kW

MAINS FUSE

16 A

EFFICIENCY

85 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 6 mm

PROTECTION DEGREE

IP23

DIMENSIONS

53 x 24 x 45 cm

WEIGHT

36 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

QUICK GAS CONNECTOR

804208

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM

802220

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM

802222

KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM

802232

KIT 10 CERIUM-TUNGSTEN ELECTR. D.3,2 MM

802233

KIT 10 PURE TUNGSTEN ELECTR. D.1 MM

802234

KIT 10 PURE TUNGSTEN ELECTR. D.1,6 MM

802235

KIT 10 PURE TUNGSTEN ELECTR. D.2,4 MM

802236

KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM

802237

KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM

802238

KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM

802239

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM

802240

KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM

802241

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

802242

KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM

802243

KIT 10 CERAMIC NOZZLES NR.4

802244

KIT 10 CERAMIC NOZZLES NR.6

802245

KIT 10 CERAMIC NOZZLES NR.7

802246

KIT 10 CERAMIC NOZZLES NR.8

802247

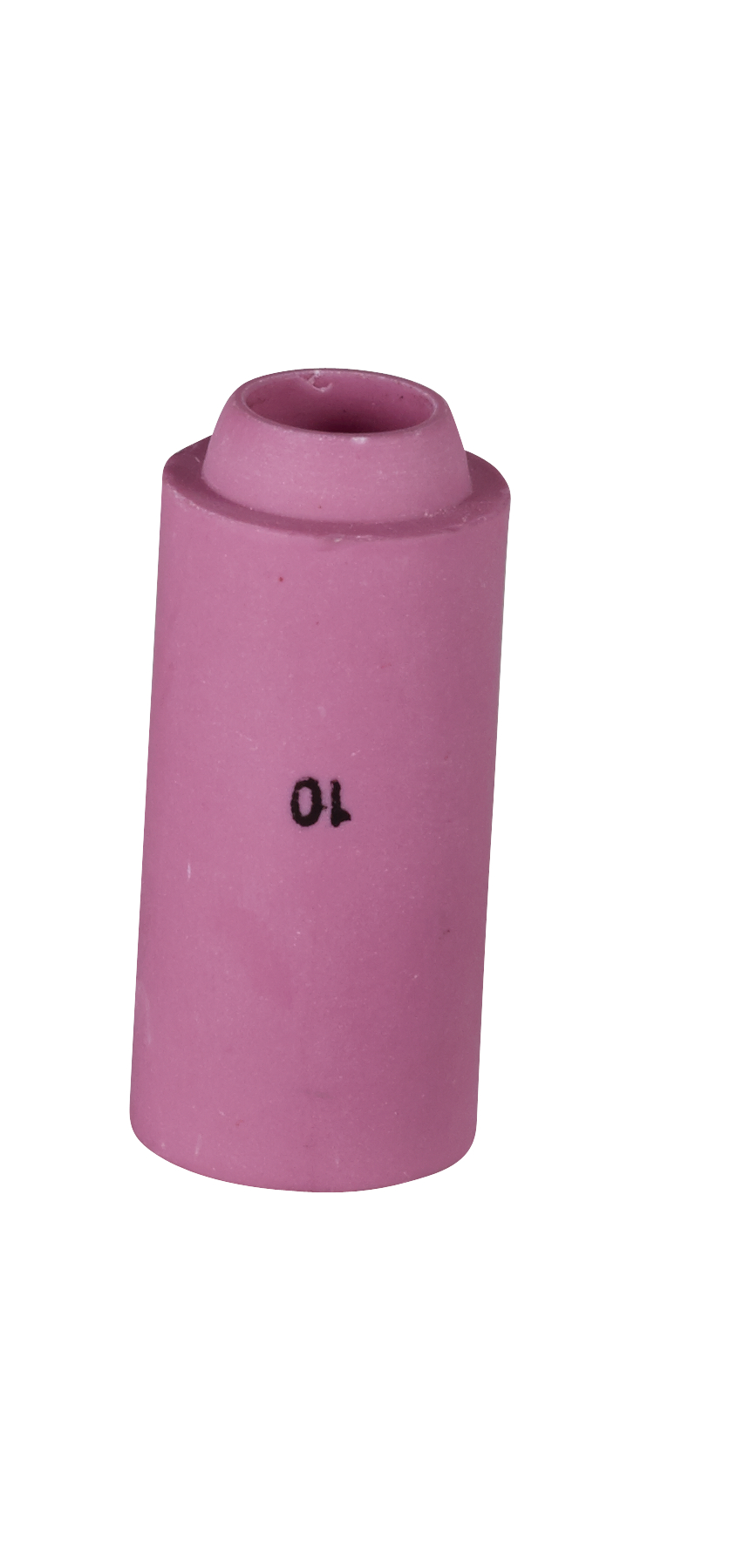

KIT 10 CERAMIC NOZZLES NR.10

802248

KIT 3 ELECTRODE DIFFUSERS D.1 MM

802249

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM

802250

KIT 3 ELECTRODE DIFFUSERS D.2,4 MM

802251

KIT 3 ELECTRODE DIFFUSERS D.3,2 MM

802252

KIT 3 ELECTRODE DIFFUSERS D.4 MM

802253

TIG RODS 308L 1.6X500 0.5kg

804364

TIG RODS 308L 2.0X500 0.5kg

804365

TIG RODS ALMG5 2.0X500 0.3kg

804368

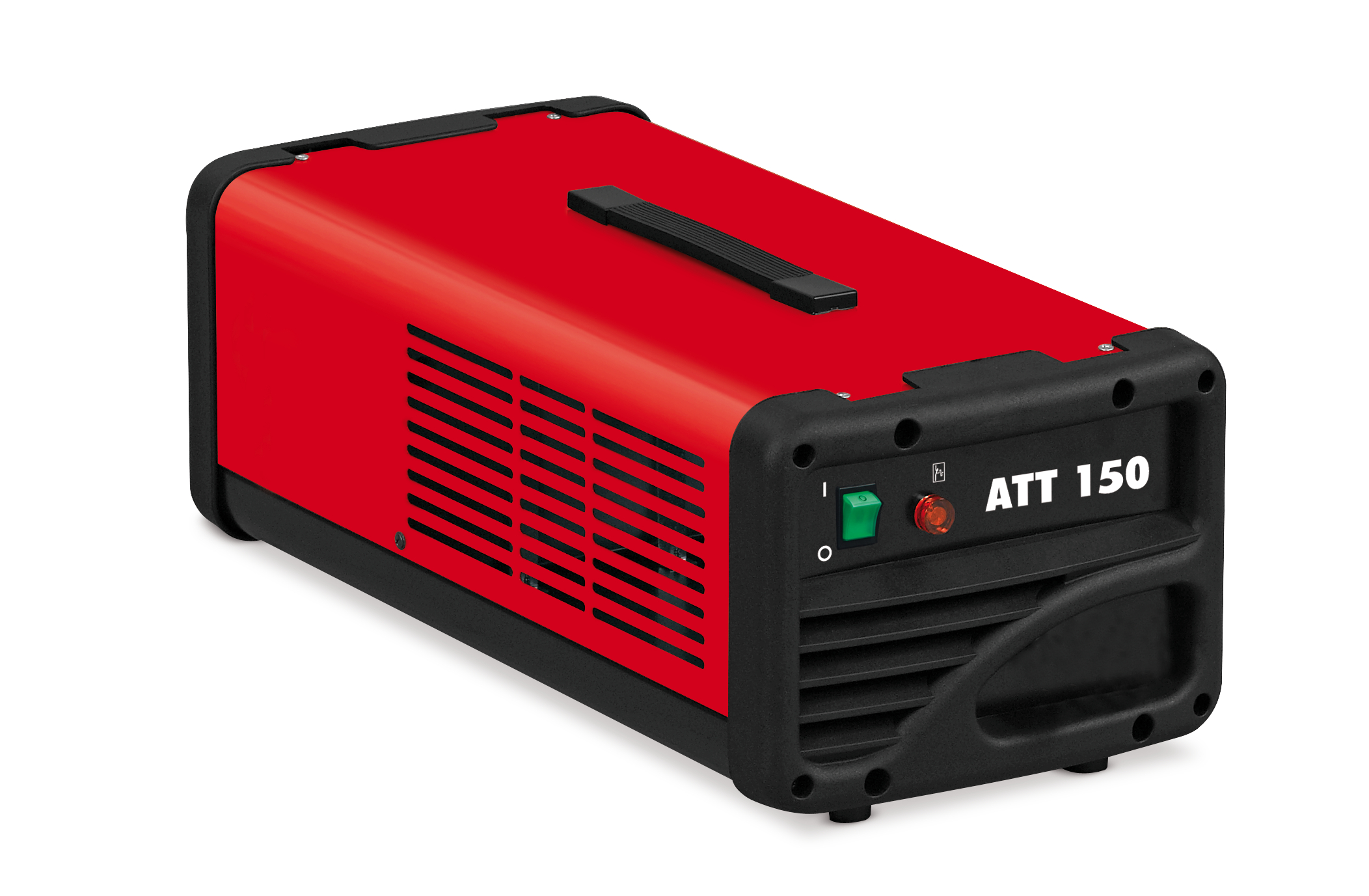

ATT 150 3PH 220->400V

802685

ARGON GAS BOTTLE IT ADAPTOR

432036

ARGON GAS BOTTLE GB-AU ADAPTOR

432102

ARGON GAS BOTTLE DK-N-NL-S-SF ADAPTOR

432160

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

MMA WELDING KIT 400A 50 MMQ 4+3M AX50

801093

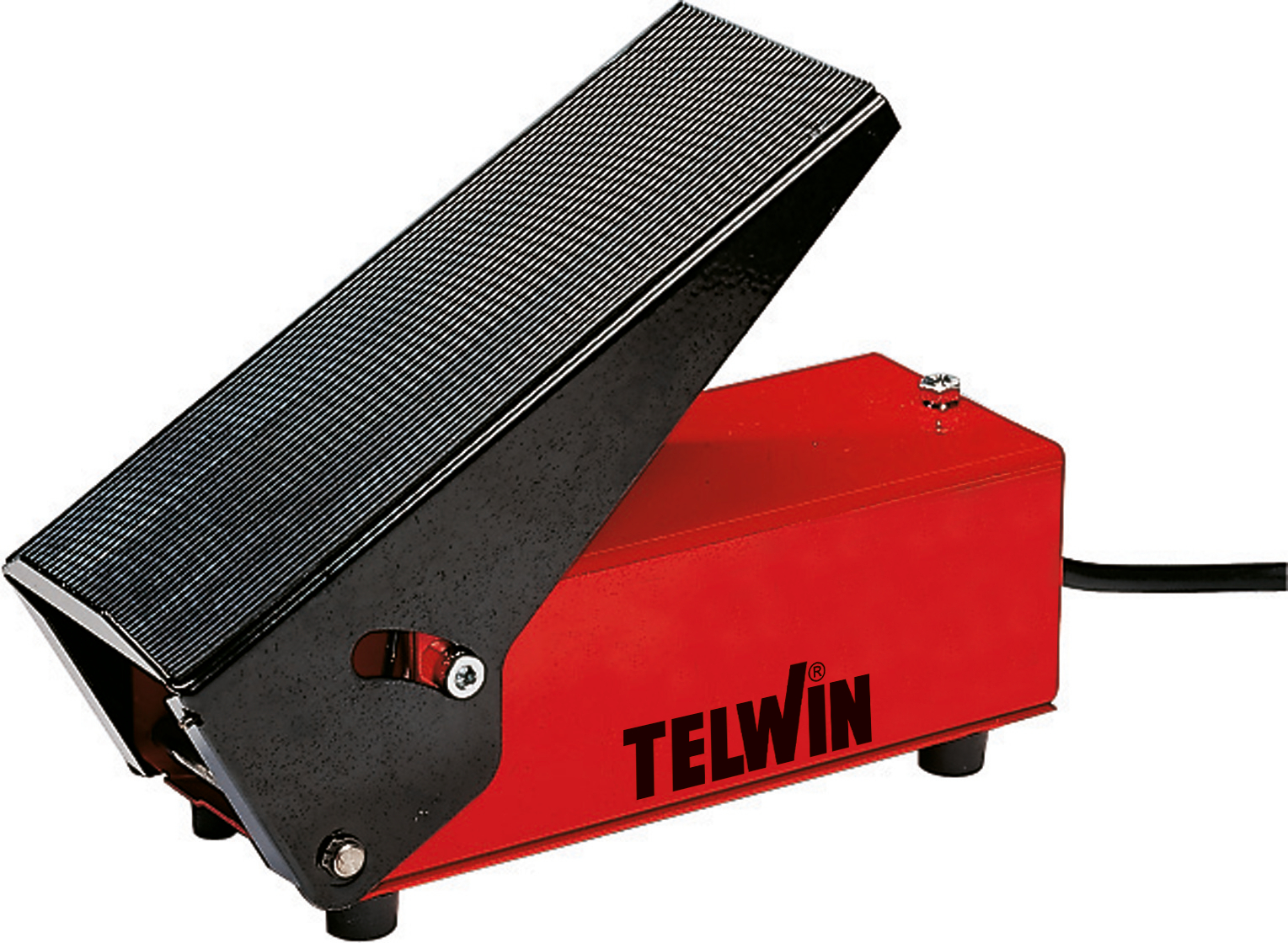

FOOT REMOTE CONTROL 14 POLES

802017

INDUSTRIAL TYPE BOTTLE CONNECTION KIT

802067

RC-20 10 M CONTROL 2POT

802336

VANTAGE DRAGON MMA-MIG/MAG-TIG HELMET

802614

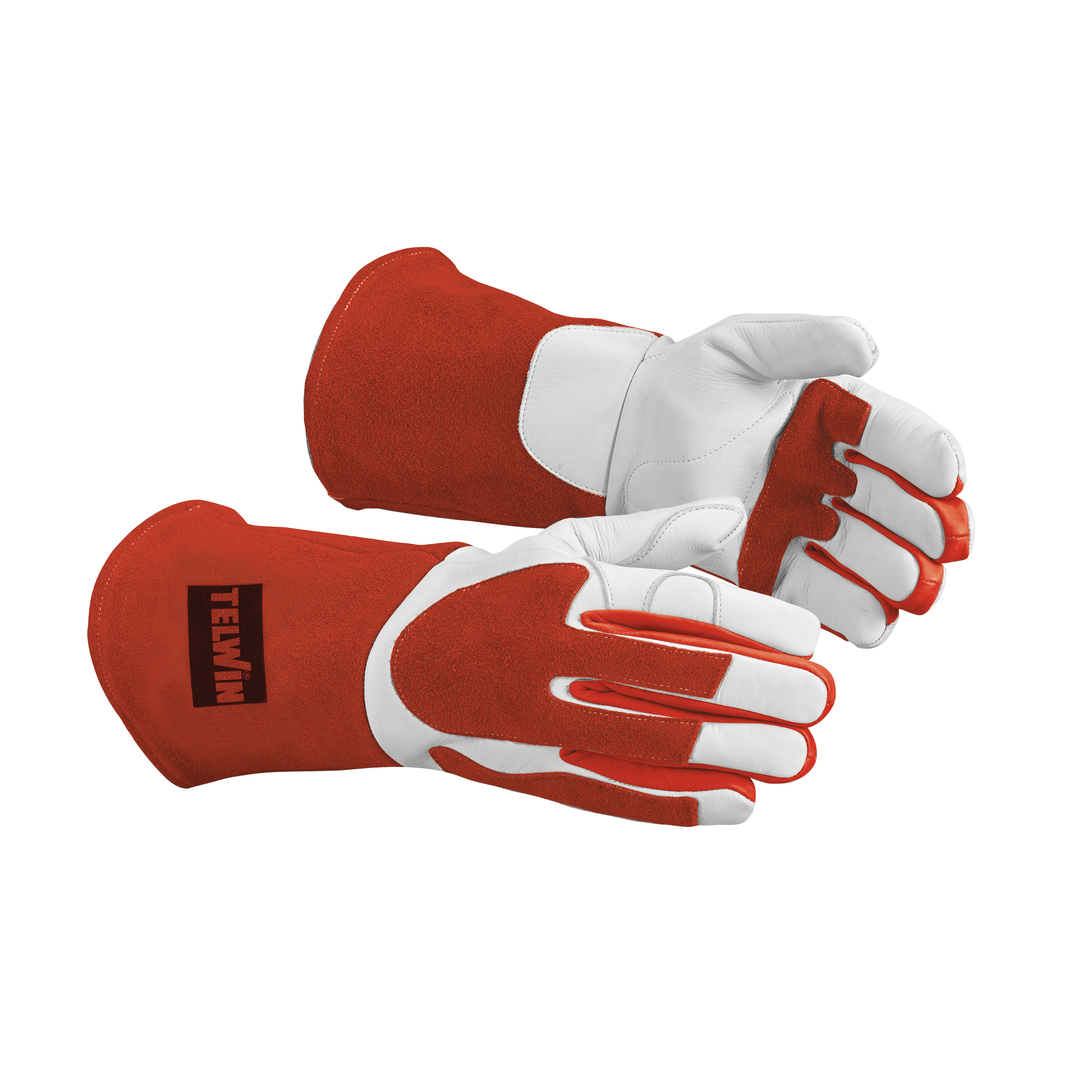

DAKOTA PROFESSIONAL TIG WELDING GLOVES

802632

GRA 4000 WATER COOLING UNIT

802640

TIG WELDING KIT - ST18 AQUA

802789

TROLLEY - EUROPA

803073

WORK CLAMP + CABLE 50MMQ 3M AX50

804125

CLEANTECH 100

850000

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories.

CODE

816134

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

5 - 350 A

MAX CURRENT DC EN60974-1

350 @ 35 % A

DC CURRENT AT 60%

250 A

MAX NO LOAD VOLTAGE IN DC

64 V

MAX ABSORBED CURRENT

21 A

ABSORBED CURRENT AT 60%

13 A

MAX ABSORBED POWER

14 kW

ABSORBED POWER AT 60%

8 kW

MAINS FUSE

16 A

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,9

D.USABLE ELECTRODES IN DC

1,6 - 6 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

53 x 24 x 45 cm

WEIGHT

36 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

TIG WELDING KIT - ST26

802788

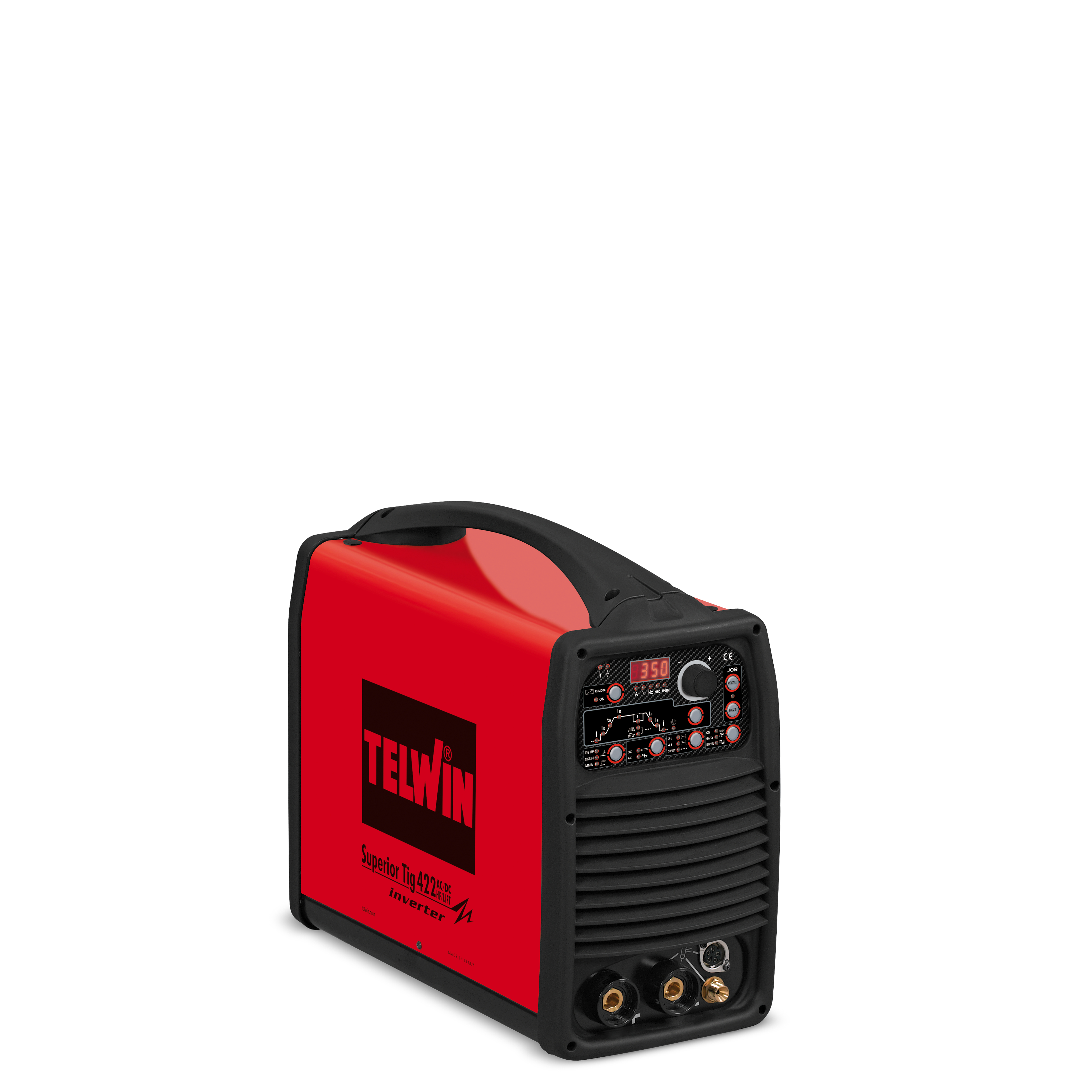

SUPERIOR TIG 422

816069

QUICK GAS CONNECTOR

804208

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM

802220

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM

802222

KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM

802232

KIT 10 CERIUM-TUNGSTEN ELECTR. D.3,2 MM

802233

KIT 10 PURE TUNGSTEN ELECTR. D.1 MM

802234

KIT 10 PURE TUNGSTEN ELECTR. D.1,6 MM

802235

KIT 10 PURE TUNGSTEN ELECTR. D.2,4 MM

802236

KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM

802237

KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM

802238

KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM

802239

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM

802240

KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM

802241

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

802242

KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM

802243

KIT 10 CERAMIC NOZZLES NR.4

802244

KIT 10 CERAMIC NOZZLES NR.6

802245

KIT 10 CERAMIC NOZZLES NR.7

802246

KIT 10 CERAMIC NOZZLES NR.8

802247

KIT 10 CERAMIC NOZZLES NR.10

802248

KIT 3 ELECTRODE DIFFUSERS D.1 MM

802249

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM

802250

KIT 3 ELECTRODE DIFFUSERS D.2,4 MM

802251

KIT 3 ELECTRODE DIFFUSERS D.3,2 MM

802252

KIT 3 ELECTRODE DIFFUSERS D.4 MM

802253

TIG RODS 308L 1.6X500 0.5kg

804364

TIG RODS 308L 2.0X500 0.5kg

804365

TIG RODS ALMG5 2.0X500 0.3kg

804368

ATT 150 3PH 220->400V

802685

ARGON GAS BOTTLE IT ADAPTOR

432036

ARGON GAS BOTTLE GB-AU ADAPTOR

432102

ARGON GAS BOTTLE DK-N-NL-S-SF ADAPTOR

432160

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

MMA WELDING KIT 400A 50 MMQ 4+3M AX50

801093

FOOT REMOTE CONTROL 14 POLES

802017

INDUSTRIAL TYPE BOTTLE CONNECTION KIT

802067

RC-20 10 M CONTROL 2POT

802336

VANTAGE DRAGON MMA-MIG/MAG-TIG HELMET

802614

DAKOTA PROFESSIONAL TIG WELDING GLOVES

802632

GRA 4000 WATER COOLING UNIT

802640

TIG WELDING KIT - ST18 AQUA

802789

TROLLEY - EUROPA

803073

WORK CLAMP + CABLE 50MMQ 3M AX50

804125

CLEANTECH 100

850000

Discover other products

Discover more

SUPERIOR TIG 251

Discover more
Discover more

SUPERIOR TIG 252

Discover more
Discover more

SUPERIOR TIG 252 AQUA

Discover more
Discover more

SUPERIOR TIG 311

Discover more
Discover more

SUPERIOR TIG 421 AQUA

Discover more
Discover more

SUPERIOR TIG 421

Discover more
Discover more

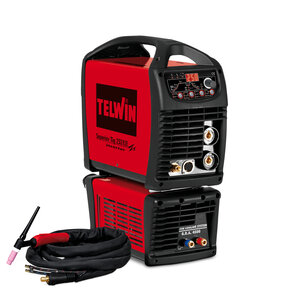

SUPERIOR TIG 422 AQUA
