MASTERCHARGE 740

New

MASTERCHARGE 740

Download PDF Request Info

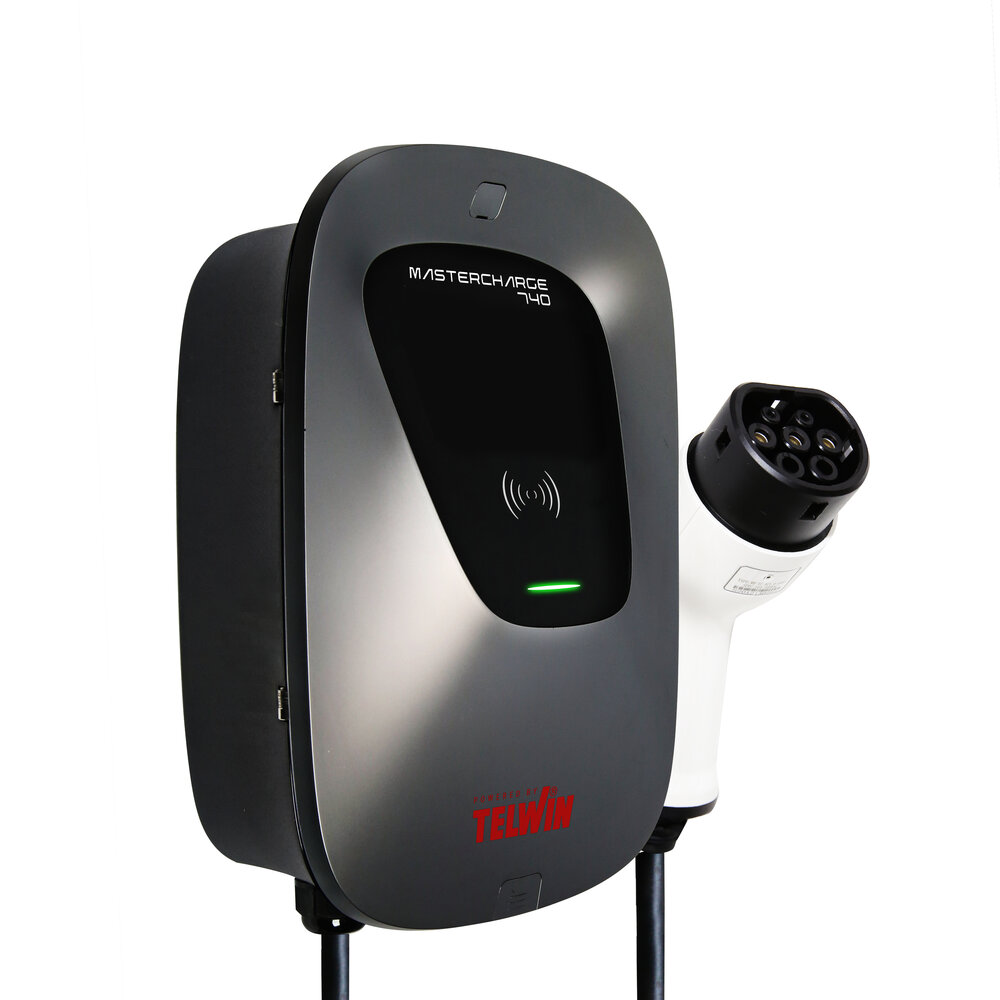

Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.

Features:
- 7,4 kW power (32A 230V singlephase);
- Mode 3 connection, Type 2 connector;
- 5-metre long cable;
- Activation via RFID badge (2 cards supplied);
- Rating IP54;
- Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893003

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 Hz

MAX ABSORBED POWER

7,4 kW

MAX. CURRENT

32 A

MAX POWER

3

CONTROL/CUSTOM

RFID

EV CONNECTOR TYPE

Type 2

RECHARGE MODE

Mode 3

CABLE TYPE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS

13,2 x 27,0 x 36,2 cm

WEIGHT

4,85 kg

Catalog Image

Instruction Manual

Certificate

Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.

Features:
- 7,4 kW power (32A 230V singlephase);
- Mode 3 connection, Type 2 connector;
- 5-metre long cable;
- Activation via RFID badge (2 cards supplied);
- Rating IP54;
- Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893003

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 Hz

MAX POWER

7,4 kW

CURRENT MAX

32 A

POTENZA STAND BY

3

CONTROL/CUSTOM

RFID

EV CONNECTOR TYPE

Type 2

CHARGING MODES

Mode 3

TYPE CABLE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS (LxWxH)

13,2 x 27,0 x 36,2 cm

WEIGHT

4,85 kg
